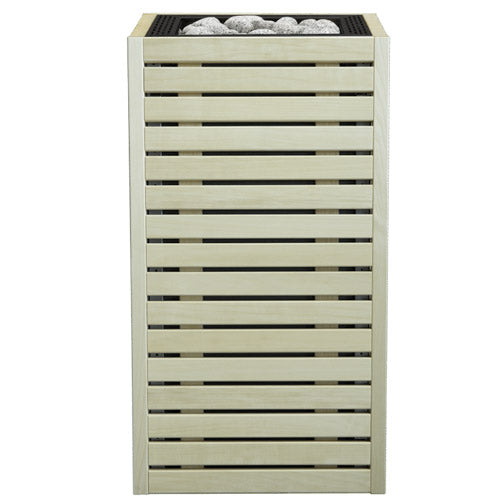

HUUM CORE Aspen — CORE Series Sauna Heater, Aspen Wood Exterior, Up to 10.5kW
by HUUM
SKU CORE6-ASP-BK
Sold out
Original price
$2,820
-
Original price
$3,075
Original price
$2,820
$2,820
-
$3,075
Current price
$2,820
HUUM CORE Aspen — core series sauna heater, aspen wood exterior, up to 10.5kw. Review the specifications, included components and installation documents below to plan your installation.
Features
- 240V/1PH operation
- Customizable design with choice of different inlay finishes
- Wood panels add a finished look to the heater.
- Built to match the sauna room aesthetic
- Can be completely embedded into a sauna bench
- Direct contact between stones and heating elements
- Stainless steel, industrial quality heating elements
- Designed, engineered, and made in Estonia
- Works with UKU controls (sold separately)
- 66 pound stone capacity (required 2 boxes sold separately)
- Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm) x 32.7"H (83 cm)
Includes
- Sauna Heater
- Adjustable Legs (4)
- Unfinished Metal Shields (4)
- Cover Strips (4)
- Wood Panels (4)
- Cover Strip Fastening Screws
- Wood Panel Fastening Screws
- Installation and Operation Manual
Specifications
| Model | CORE ASPEN 6 |
|---|---|
| Room Size | 177-318 cu. ft. |
| Wattage Rating | 6500 |
| Amperage | 25 |
| Wire Size AWG | 10 |
| Model | CORE ASPEN 9 |
|---|---|
| Room Size | 283-460 cu. ft. |
| Wattage Rating | 9000 |
| Amperage | 37.5 |
| Wire Size AWG | 8 |
| Model | CORE ASPEN 11 |
|---|---|
| Room Size | 354-566 cu. ft. |
| Wattage Rating | 10500 |
| Amperage | 43.75 |
| Wire Size AWG | 8 |
| Model | CORE ASPEN |
|---|---|
| Room Size | 177-566 cu. ft. |
| Wattage Rating | 6500-10500 |
| Voltage | 240 |
| Phase | 1 |
| Amperage | 25-43.75 |
| Circuit Breaker | See Installation and Operation Manual |
| Wire Size AWG | 10 or 8 |
| Safety Listing | CE (CE Certificate) |
| Minimum Ceiling Height | 80" (203 cm) |
| Safety Distance (Front to Back) | See Installation and Operation Manual |
| Safety Distance (Left to Right) | See Installation and Operation Manual |
| Stone Capacity | 66 lbs (30 kg) |
| Stone Size | 2" to 4" (5-10 cm) |
| Width | 12.2" (31 cm) |
| Depth | 12.2" (31 cm) |
| Height | 32.7" (83 cm) |
| Weight | 41.9 lbs (19 kg) |
| Shipping Weight with Sauna Stones | 107.9 lbs (48.9 kg) |
| Model | CORE ASPEN PANEL |
|---|---|
| Construction Material | Aspen Wood |
| Width | 15.1" (38.4 cm) |
| Depth | 1.1" (2.7 cm) |
| Height | 31.5" (80 cm) |
Manuals & Warranty
- HUUM CORE Sauna Heater IOM
- HUUM Element Requirements
- HUUM Stone Requirements
- Sizing Your HUUM
- HUUM_Warranty_terms_v4_ENG
Warranty eligibility, exclusions and installation requirements are governed by the manufacturer documents linked above.
HUUM warranty terms contain exclusions for accessories, heating elements, stones, stove glass and ash grates, and controller sensors. See the current terms above; no blanket coverage is implied.
