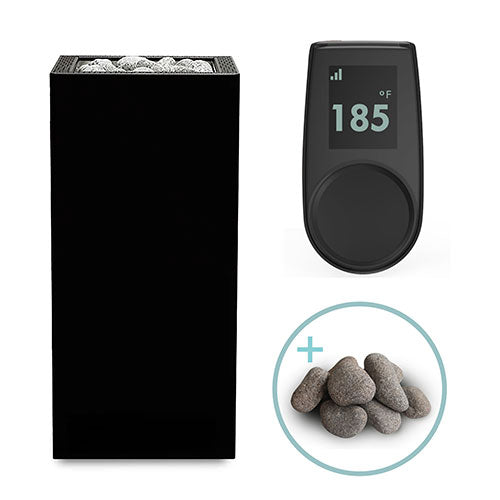

HUUM CORE Black Pkg — CORE Series Sauna Heater Package, Black Exterior, Up to 10.5kW
HUUM CORE Black Pkg — core series sauna heater package, black exterior, up to 10.5kw. Review the specifications, included components and installation documents below to plan your installation.
Features
CORE Black Sauna Heater
- 240V/1PH operation
- Sleek matte black metal casing
- Black steel inlay finish adds a cohesive look
- Can be completely embedded into a sauna bench
- Direct contact between stones and heating elements
- Stainless steel, industrial quality heating elements
- Designed, engineered, and made in Estonia
- Works with UKU Controls
- 66 pound stone capacity
- Dimensions: 15.2"W (38.5 cm) x 15.2"D (38.5 cm) x 32.7"H (83 cm)
UKU Control
- Sleek control display panel
- For heaters up to 18kW (over 11kW requires an extension box)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230°F
- Delayed start up to 48 hours in advance
- Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 6-8 language options: English, German, Russian, Italian, Finnish, Estonian (additional Polish and French with mobile app)
- Unlimited number of users
- Notification when set temperature is reached
- Inside/outside sauna room installation
- Optional smart heating setting
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Dimensions: 2.2"W (5.6 cm) x 0.9"D (2.3 cm) x 4.1"H (10.4 cm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
CORE Black Sauna Heater
- Sauna Heater
- Adjustable Legs (4)
- Installation and Operation Manual
UKU Control
- Control Panel
- Main Module
- Temperature Sensor
- Door Sensor
- Control Panel Cable
- Temperature Sensor Cable
- Door Sensor Cable
- Installation and Operation Manual
Stones 24
- 66 lbs of 2" to 4" (5-10 cm) Round Sauna Stones
Specifications
| Model | CORE BLACK |
|---|---|
| Room Size | 177-566 cu. ft. |
| Wattage Rating | 6500-10500 |
| Voltage | 240 |
| Phase | 1 |
| Amperage | 25-43.75 |
| Circuit Breaker | See Installation and Operation Manual |
| Wire Size AWG | 10 or 8 |
| Safety Listing | CE (CE Certificate) |
| Minimum Ceiling Height | 80" (203 cm) |
| Safety Distance (Front to Back) | See Installation and Operation Manual |
| Safety Distance (Left to Right) | See Installation and Operation Manual |
| Stone Capacity | 66 lbs (30 kg) |
| Stone Size | 2" to 4" (5-10 cm) |
| Width | 15.2" (38.5 cm) |
| Depth | 15.2" (38.5 cm) |
| Height | 32.7" (83 cm) |
| Weight | 41.9 lbs (19 kg) |
| Shipping Weight with Sauna Stones | 107.9 lbs (48.9 kg) |
| Model | UKU |
|---|---|
| Minimum Temperature | 104°F |
| Maximum Temperature | 230°F |
| Width | 2.2" (5.6 cm) |
| Depth | 0.9" (2.3 cm) |
| Height | 4.1" (10.4 cm) |
| Model | CORE BLACK 6 |
|---|---|
| Room Size | 177-318 cu. ft. |
| Wattage Rating | 6500 |
| Amperage | 25 |
| Wire Size AWG | 10 |
| Model | CORE BLACK 9 |
|---|---|
| Room Size | 283-460 cu. ft. |
| Wattage Rating | 9000 |
| Amperage | 37.5 |
| Wire Size AWG | 8 |
| Model | CORE BLACK 11 |
|---|---|
| Room Size | 354-566 cu. ft. |
| Wattage Rating | 10500 |
| Amperage | 43.75 |
| Wire Size AWG | 8 |
Manuals & Warranty
- HUUM CORE Sauna Heater IOM
- HUUM UKU Control IOM
- HUUM Element Requirements
- HUUM Stone Requirements
- Sizing Your HUUM
- HUUM_Warranty_terms_v4_ENG
Warranty eligibility, exclusions and installation requirements are governed by the manufacturer documents linked above.
HUUM warranty terms contain exclusions for accessories, heating elements, stones, stove glass and ash grates, and controller sensors. See the current terms above; no blanket coverage is implied.
