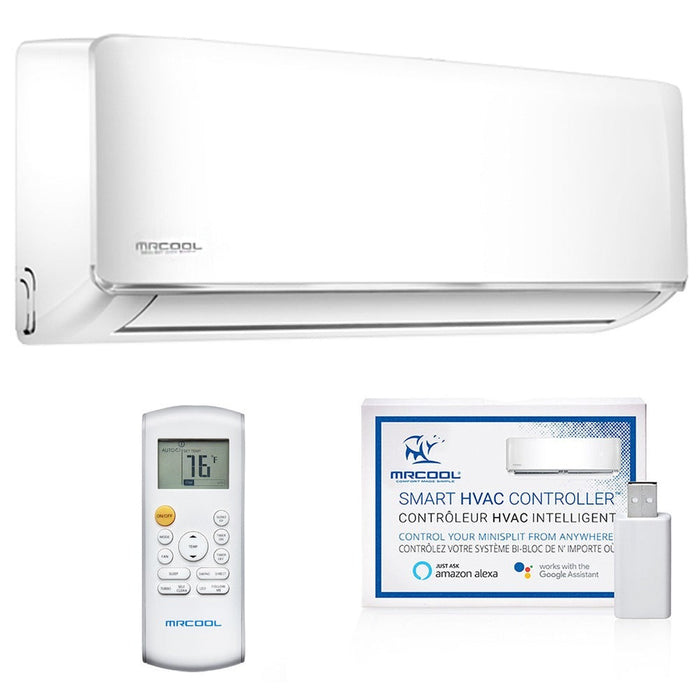

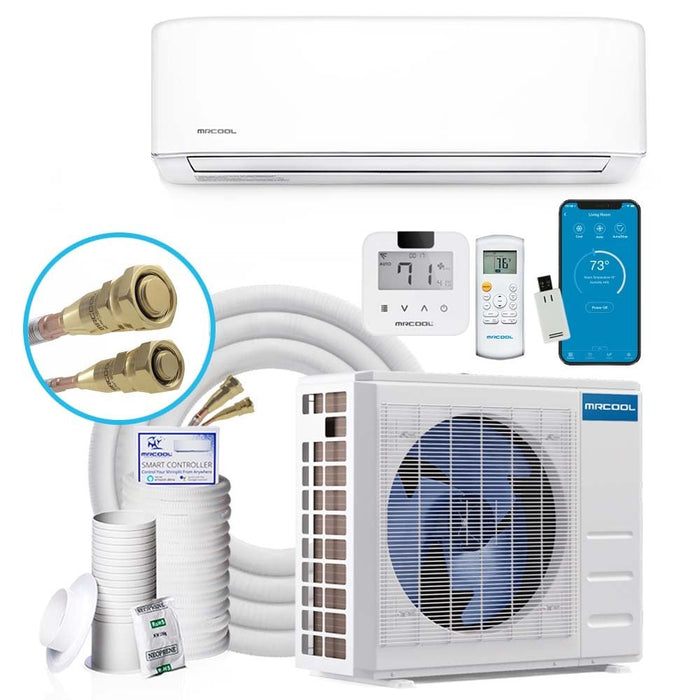

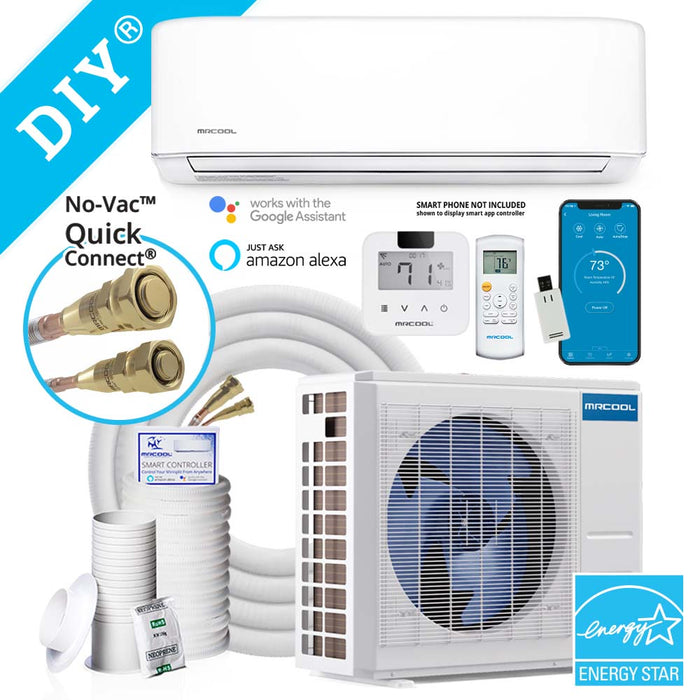

MRCOOL Energy Star 24K BTU, 2 Ton, 20 SEER,Heat Pump Condenser & Wall Mount Air Handler with Enhanced WiFi and 25 Ft. Lineset (DIY-24-HP-230B25)
In stock, ready to ship
by MRCOOL
SKU DIY-24-HP-230B25
Original price
$3,499
Original price
$3,499
-
Original price
$3,499
Original price
$3,499
Current price
$2,329
$2,329
-
$2,329
Current price
$2,329
MRCOOL Energy Star 24K BTU, 2 Ton, 20 SEER,Heat Pump Condenser & Wall Mount Air Handler with Enhanced WiFi and 25 Ft. Lineset (DIY-24-HP-230B25)

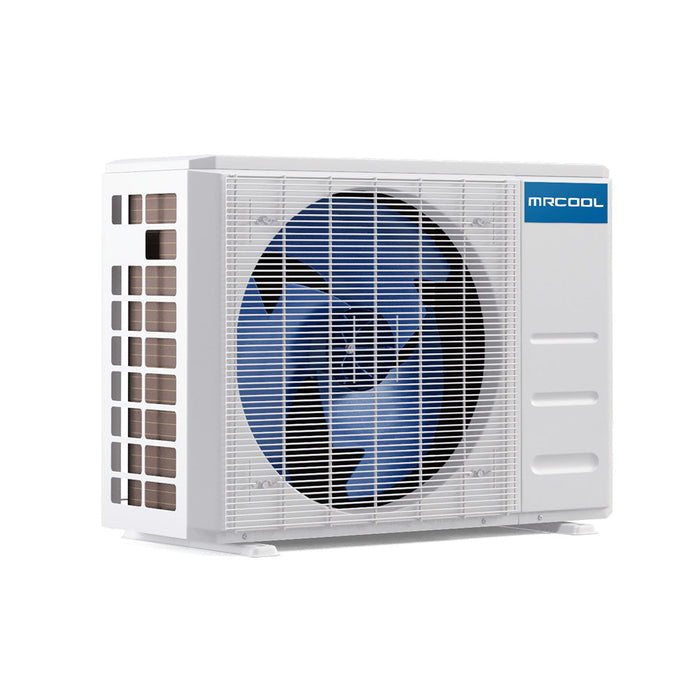

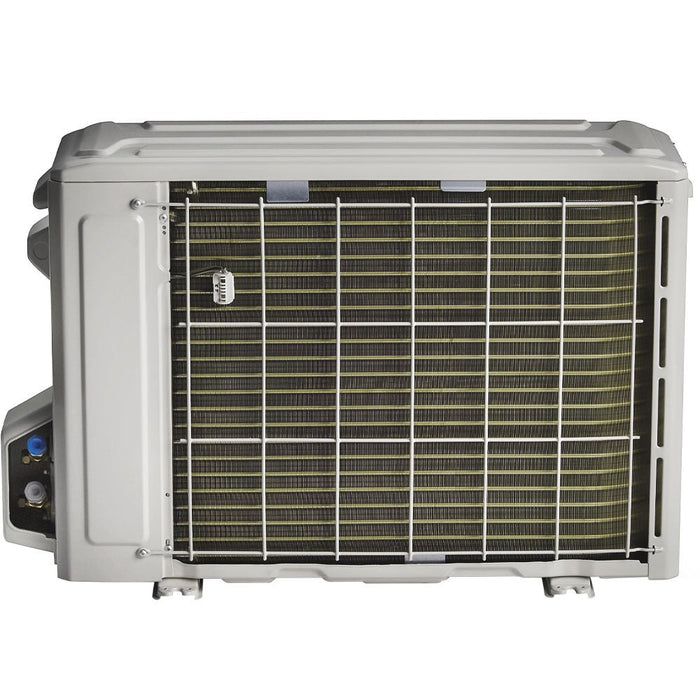

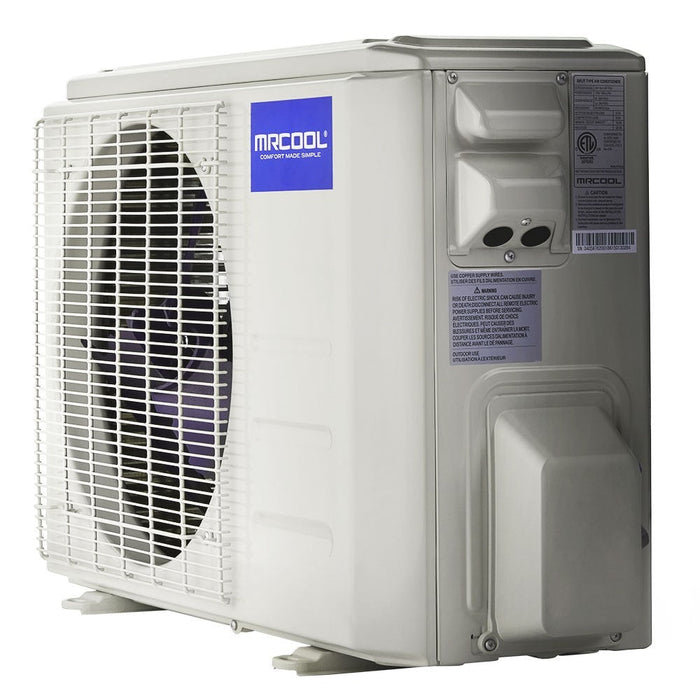

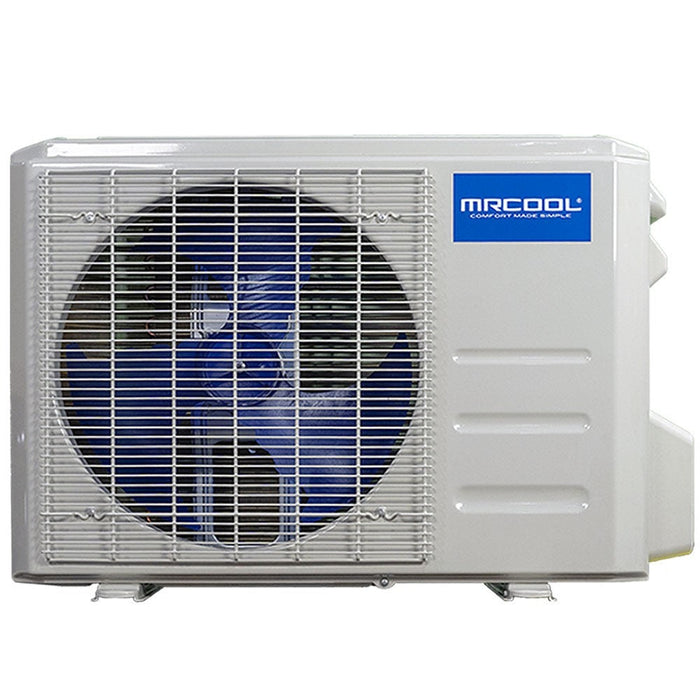

| Condenser | 37.24"W x 16.14"D x 31.89"H |

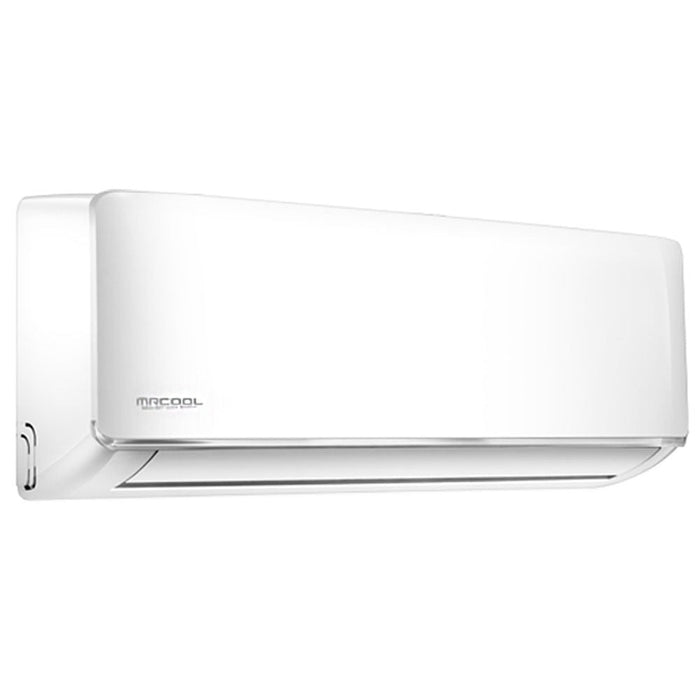

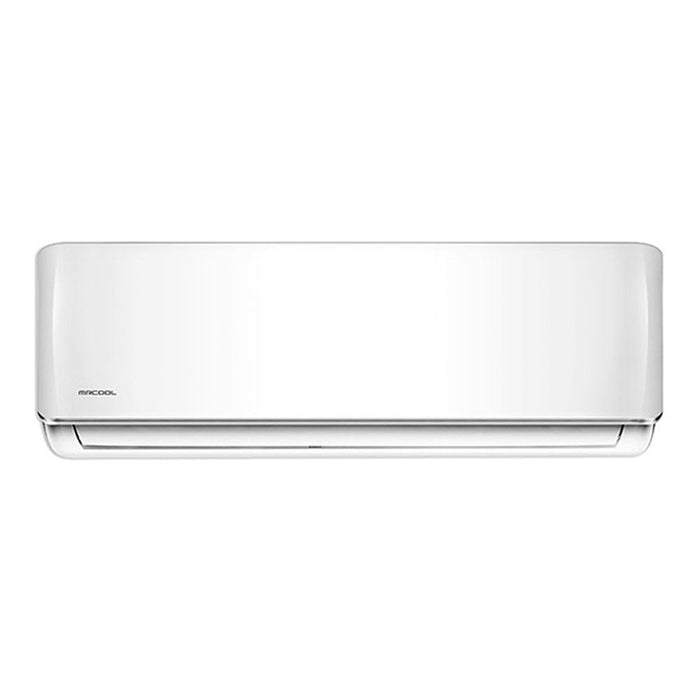

| Air Handler | 42.52"W x 8.90"D x 13.19"H |
| Freight Class | 250 |
| Mount Type | Wall |
| Unit Type | Mini-Split |
| SEER | 20 |
| EER | 12.5 |
| HSPF | 10 |
| CFM | 570/441/335 |
| Tonnage | 2 |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 25,000 BTU |
| Color | White |
| Decibel | 33.5/42/47 dBA |
| Phase | 1 |
| Min Circuit Ampacity | 18 A |
| Max Coverage Area | 1000 sq ft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 82.9 oz |
| Air Flow Direction | 4-Way |
| Speed | 4 |
| Min Ambient Heat | 5 Degrees F |
| Electrical Requirements | 208-230V / 60Hz / 25A |

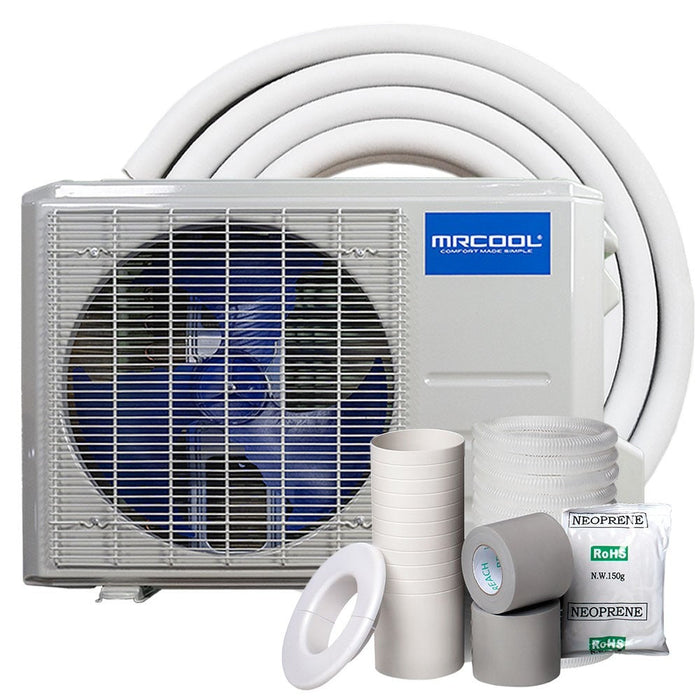

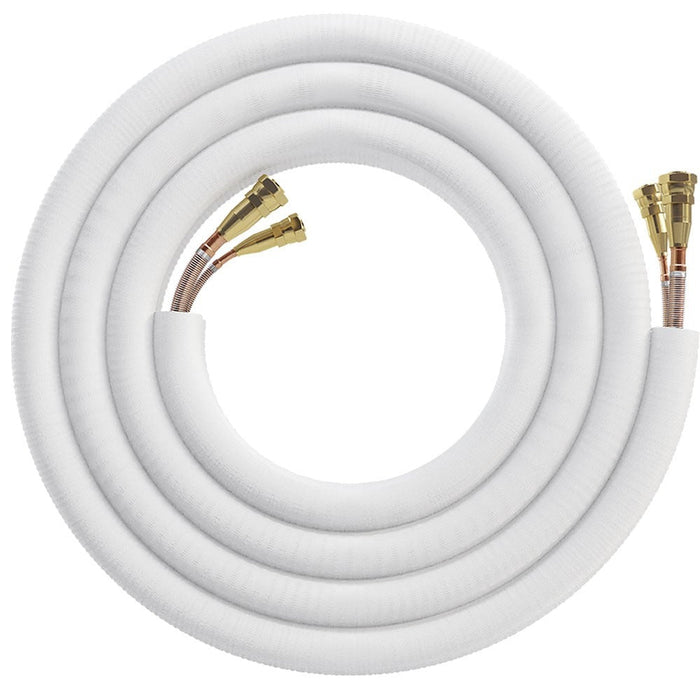

| Line Set Length | 16ft or 25ft |
| Max Lineset Length | 98ft Max |

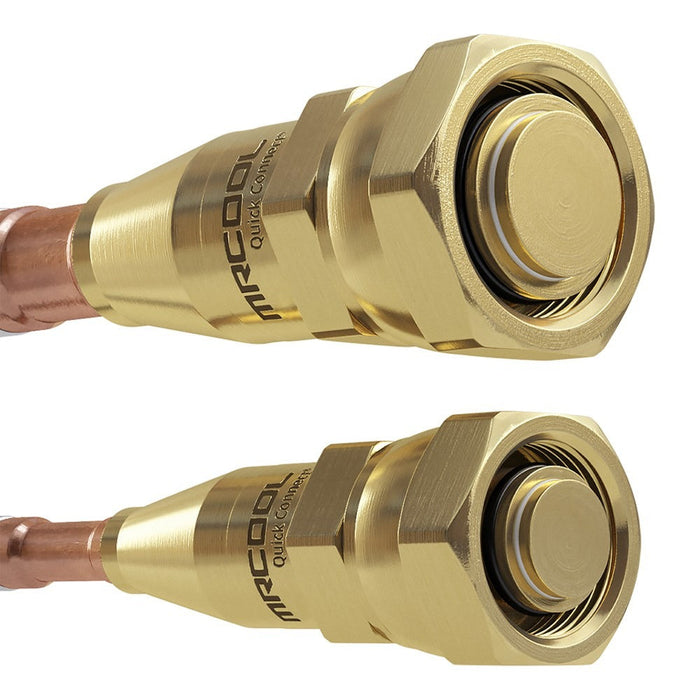

| Liquid Line Fitting | 1/2 Inches |
| Liquid Line Size | 3/8 Inches |
| Suction Line Fitting | 3/4 Inches |
| Suction Line Size | 5/8 Inches |
| Control Type | LED |
| Condense Fan Motor RPM | 700/750/85 |
| Blower Motor RPM | 700/900/11 |
| Filter Type | Washable |
| Oscillation | Yes |
| Inverter | Yes |
| Overload Protection | Yes |
| Adjustable Thermometer | Yes |
| Modes |
Quiet Mode Fan Only Auto Cool |

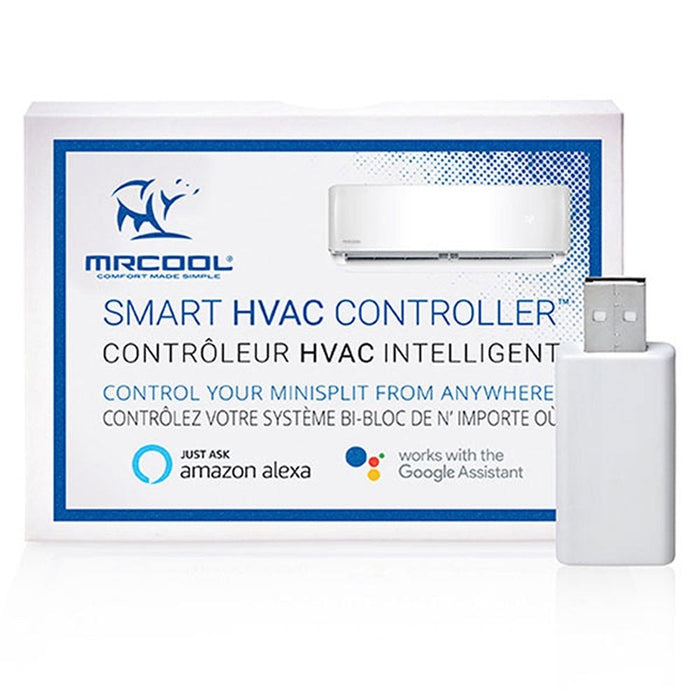

| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with: |
iOS Android |
| Includes | Remote Control Batteries |
| Certifications | CSA Energy Star AHRI |
| Registered Warranty | 5-year Parts/7-year Compressor/1-year Remote |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Restricted States | GU, PR, VI |
