MRCOOL Central Ducted 48K BTU, 17.3 SEER, Ducted Air Handler and Condenser (CENTRAL-48-HP-230-00)

In stock, ready to ship
by MRCOOL
SKU CENTRAL-48-HP-230-00
Original price $5,500
Original price $5,500 - Original price $5,500
Original price $5,500
Current price $4,173
$4,173 - $4,173
Current price $4,173

MRCOOL Central Ducted 48K BTU, 17.3 SEER, Ducted Air Handler and Condenser (CENTRAL-48-HP-230-00)


MRCOOL 48K BTU 17.3 SEER Ducted Air Handler and Condenser


Making yourself at home can be almost impossible if you don’t have a reliable home comfort unit. Luckily, you can put this affordable MRCOOL 48k BTU up to 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and enjoy instant comfort and savings.

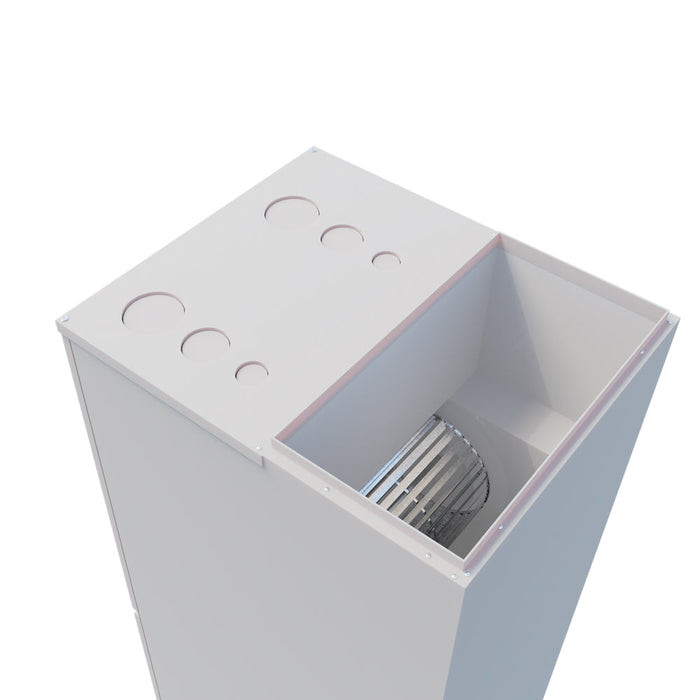

This system can cover around 2,000 square feet of your home, so every inch can be filled with crisp, clean, comforting air. You’ll be happy to learn that the air handler is multi-position, so it can be installed in an upflow, downflow, horizontal left or right configuration.

This system is compatible with the MrCool® No-Vac® Quick Connect® line set (Purchased separately). The variable speed condenser is one of the reasons why this system is as efficient as it is, so you can enjoy comfort without increasing your bills. Identify error codes on the thermostat or on the panel on the handler. The 10 year parts warranty and 10 year service warranty help greatly in the unlikely case that something goes wrong. Put the MRCOOL 48k BTU 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and feel instant comfort results.

Features

  • Includes features such as timer mode, auto cool mode, fan only mode, and more

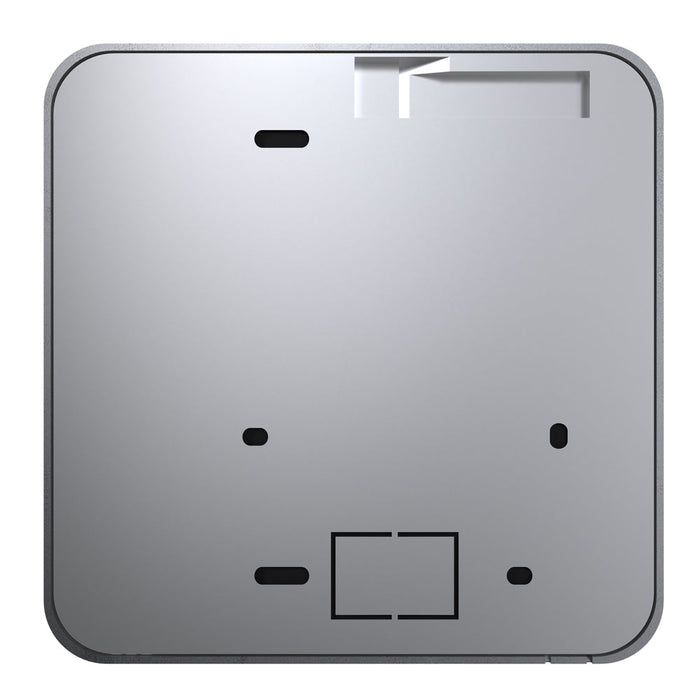

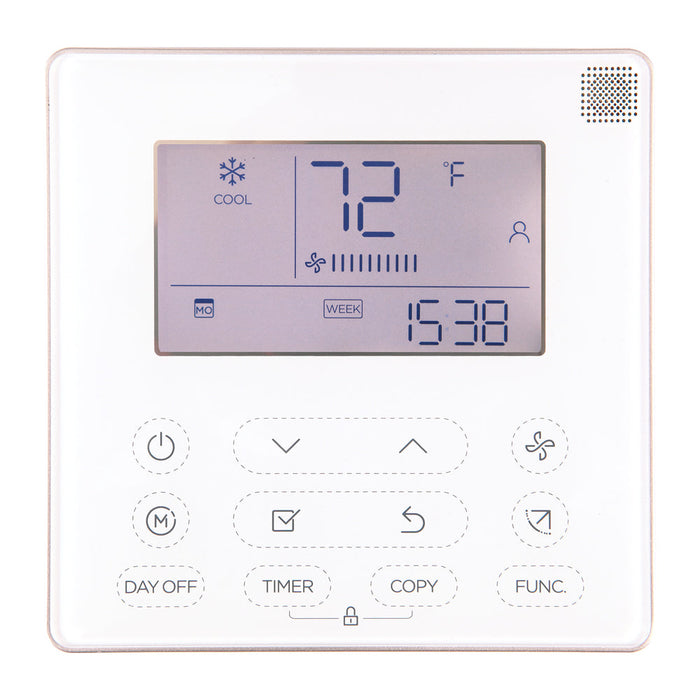

  • Wired thermostat included (.78 in x 4.72 in x 4.72in)
  • Multi position installation
  • Optional heating kit avaible
  • R-410A environmentally friendly refrigerant
  • 10 year parts and labor warranty*

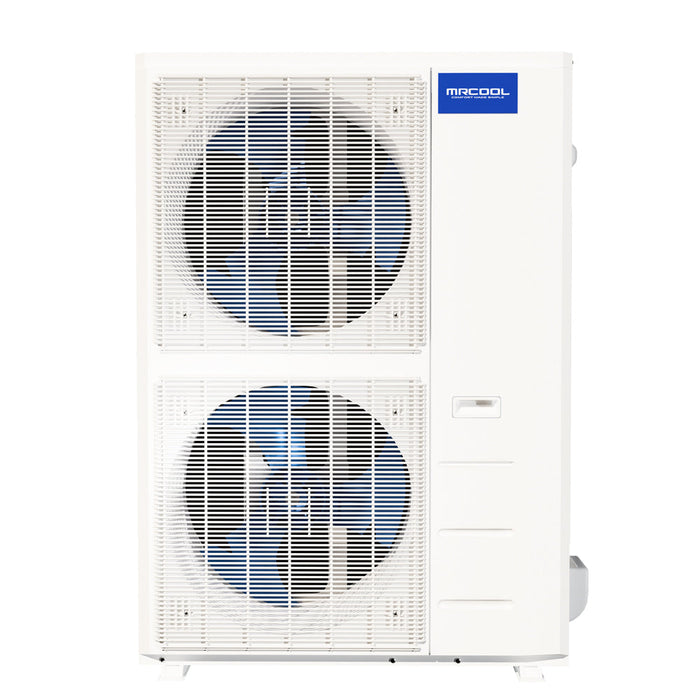

Condenser Dimensions

16.34 in D x 52.48 in H x 37.48 in W

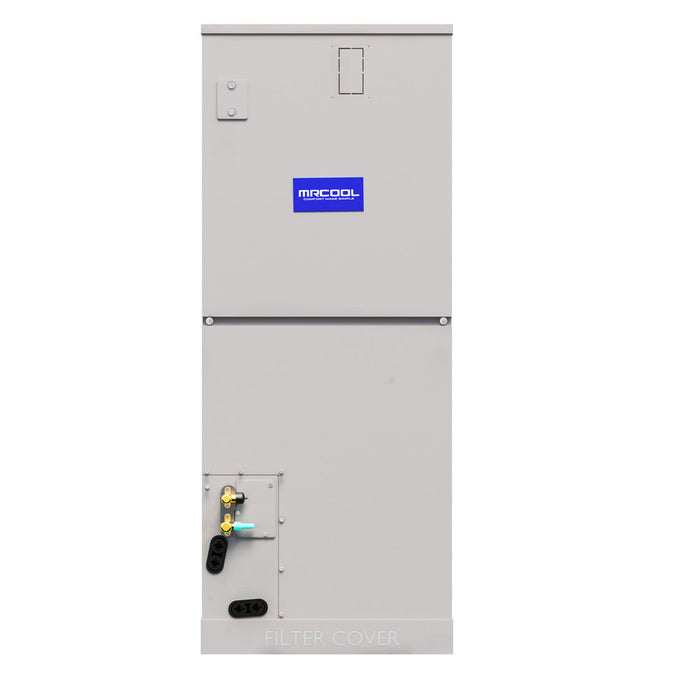

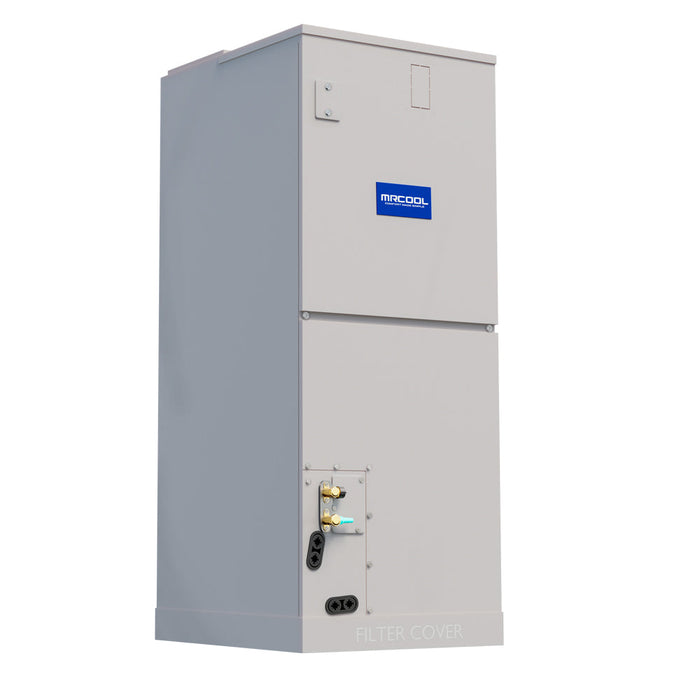

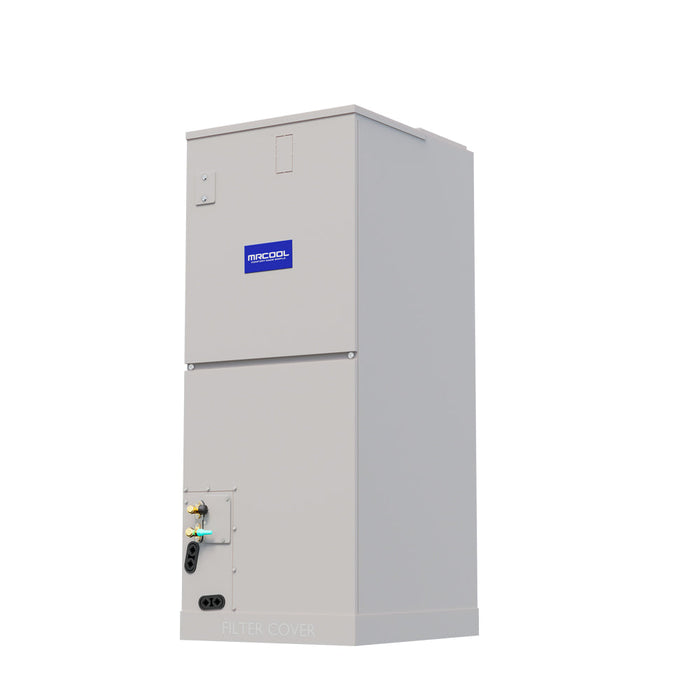

Air Handler Dimensions

21.02 in D x 49.02 in H x 21.02 in W

SEER

17.3

EER

9.3

HSPF

hspf4/hspf5: 10/8.2

CFM

1282.35/1094.12/905.88

Cooling Capacity

47000

Heating Capacity

55000

Voltage

208/230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

50

Min Circuit Ampacity

34

Color

Gray

Rated Load

2.4

Zone Capacity

1

Refrigerant Type

R410A

Refrigerant Volume

165.79 oz

Decibel Rating

53/50/46

Decibel Rating Low

46

Decibel Rating High

53

Air Flow Direction

Multi-position

Min Ambient Cool

5~122F

Min Ambient Heat

5~75.2F

Lineset Included

no

Liquid Line Size

3/8in

Suction Line Size

3/4in

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

850/750/650

Filter Type

Replaceable

Auxiliary Heater Included

no

Auxiliary Heater Available

yes

Auxiliary Heater Sizes

8kw,10kw,15kw, 20kw

Adjustable Thermostat

yes

Fan Only Option

yes

Sleep Mode

yes

Auto Cool

yes

App Compatibility

no

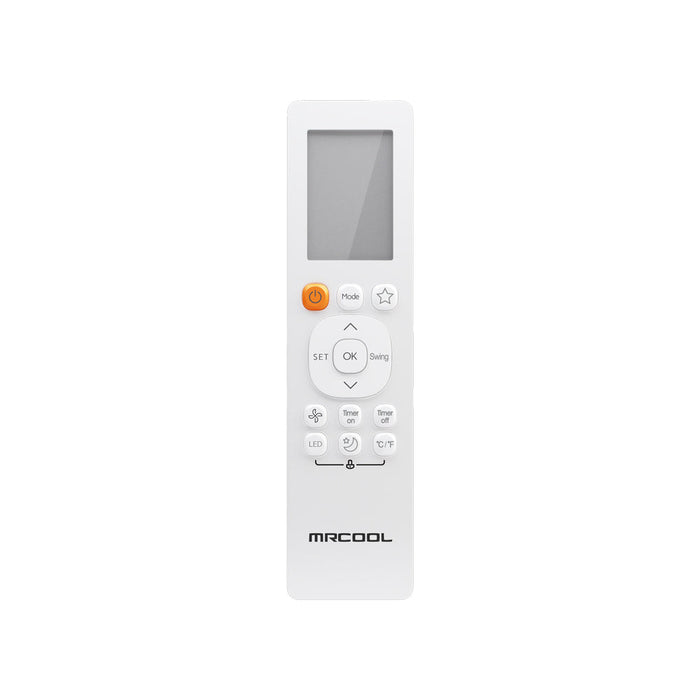

Remote Control Included

yes

AHRI Certified

yes

Base Warranty

10 years parts and labor

Condenser Weight

217.59 lbs

Air Handler Weight

132.50 lbs





Brochure

Install Manual

Specs

Remote Manual

Warranty Doc
