MRCOOL Central Ducted 30K BTU, 18.5 SEER, Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set (CENTRAL-30-HP-230-25)

In stock, ready to ship
by MRCOOL
SKU CENTRAL-30-HP-230-25
Original price $4,500
Original price $4,500 - Original price $4,500
Original price $4,500
Current price $3,585
$3,585 - $3,585
Current price $3,585

MRCOOL Central Ducted 30K BTU, 18.5 SEER, Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set (CENTRAL-30-HP-230-25)

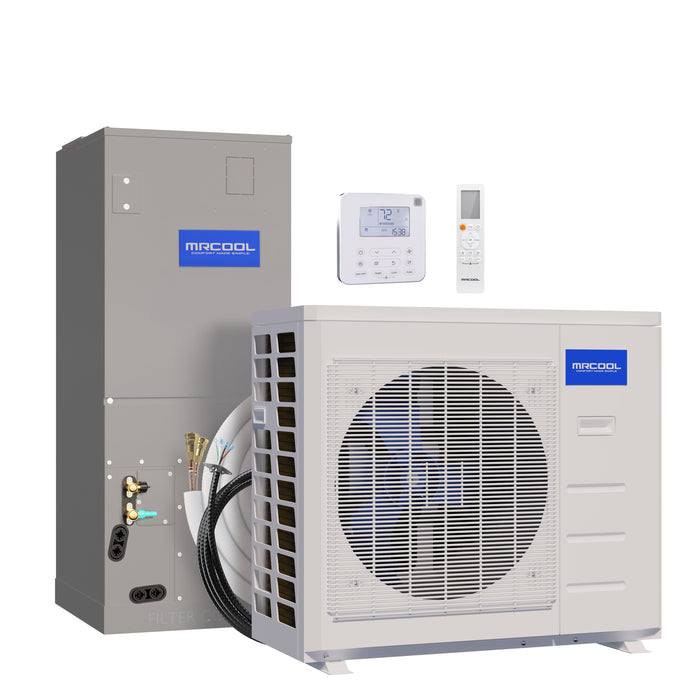

MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set

If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet.

This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere.

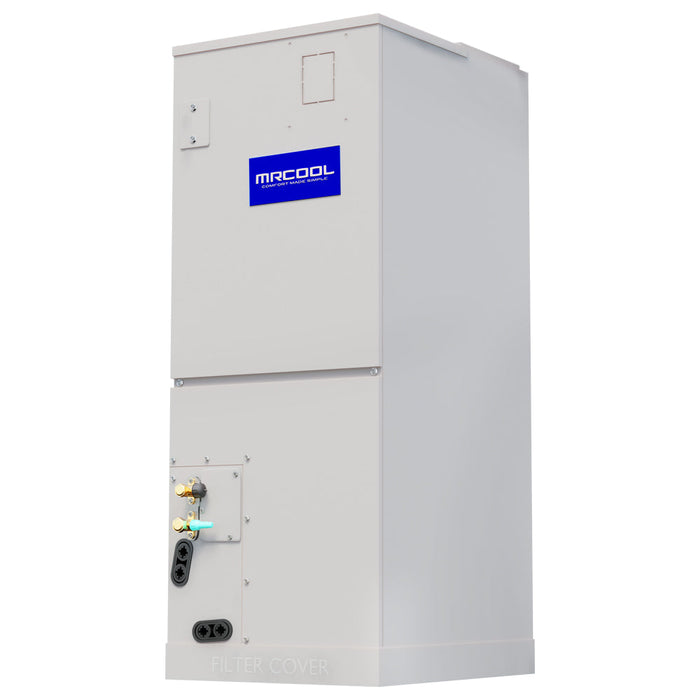

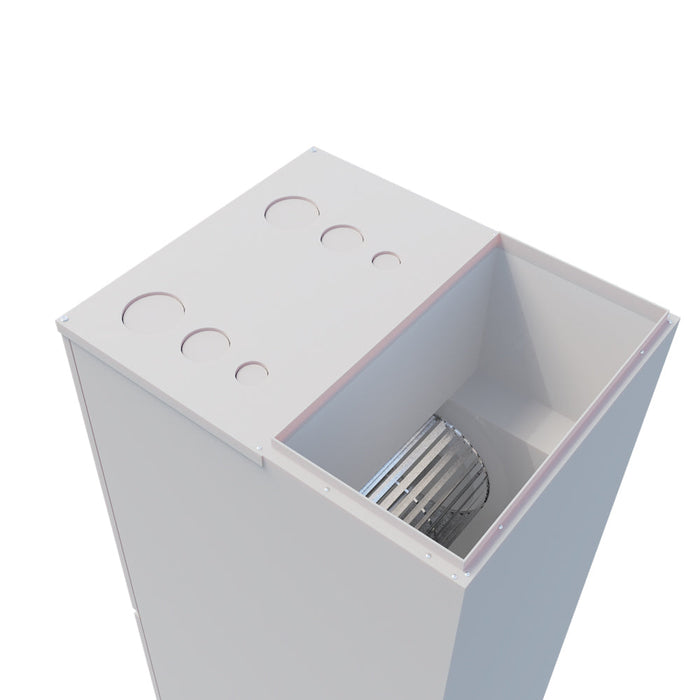

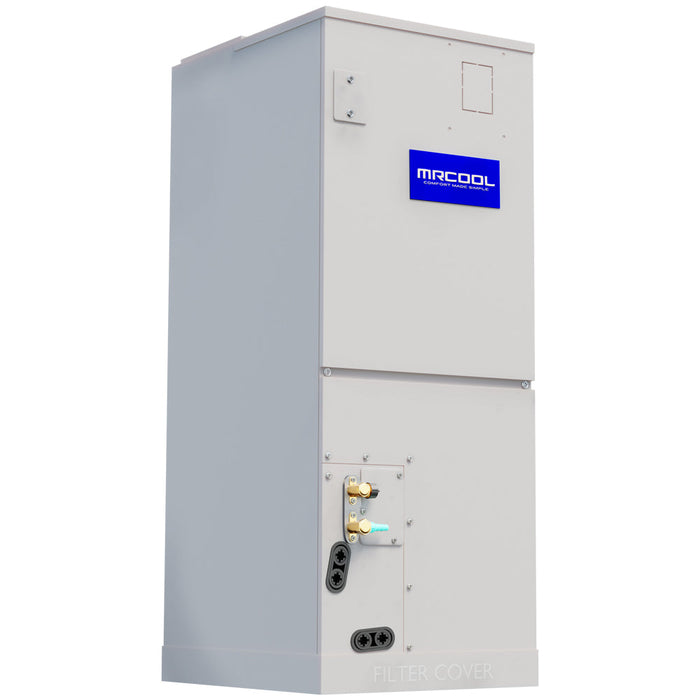

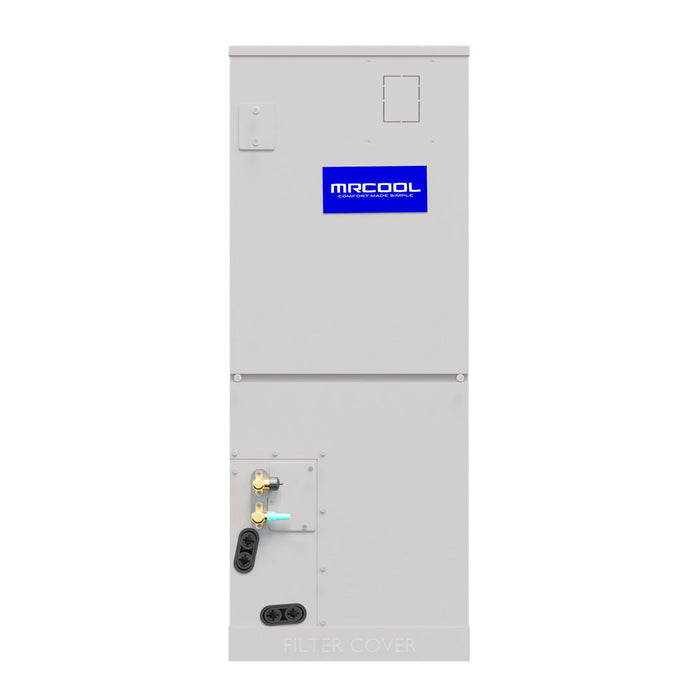

This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration. Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system.

The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a 10 year service warranty, so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.

Features

  • Includes features such as timer mode, auto cool mode, fan only mode, and more

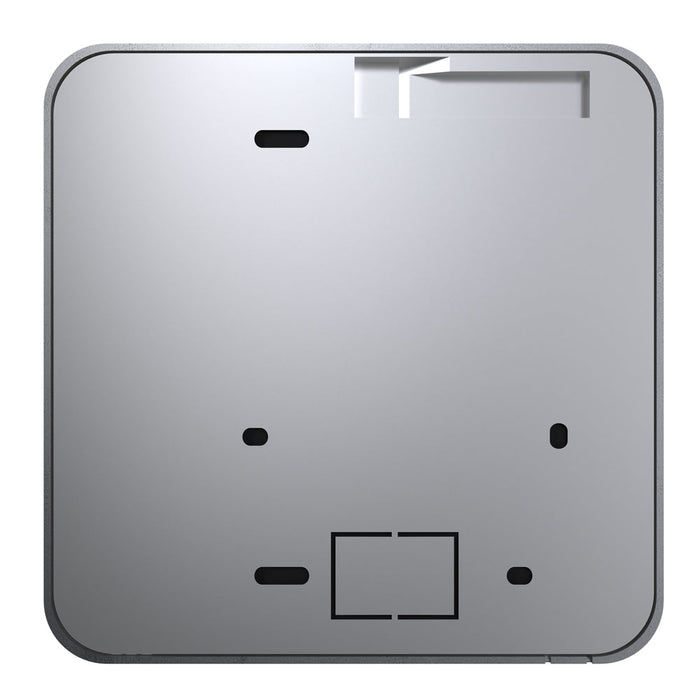

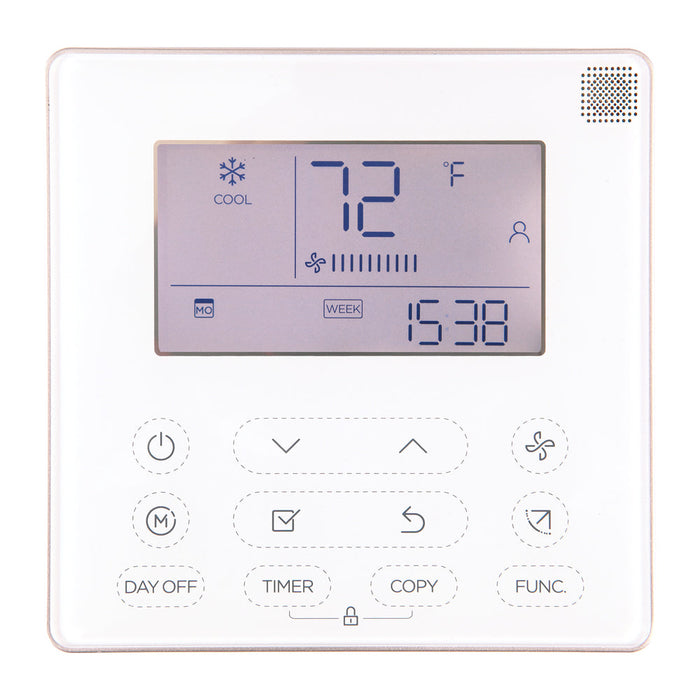

  • Wired thermostat included (.78 in x 4.72 in x 4.72in)
  • Multi position installation
  • Optional heating kit available
  • R-410A environmentally friendly refrigerant
  • 10 year parts and labor warranty*

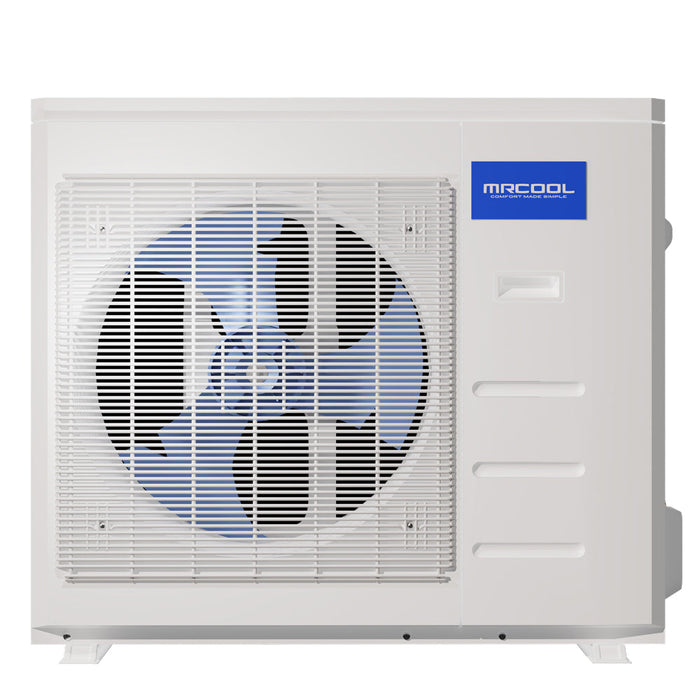

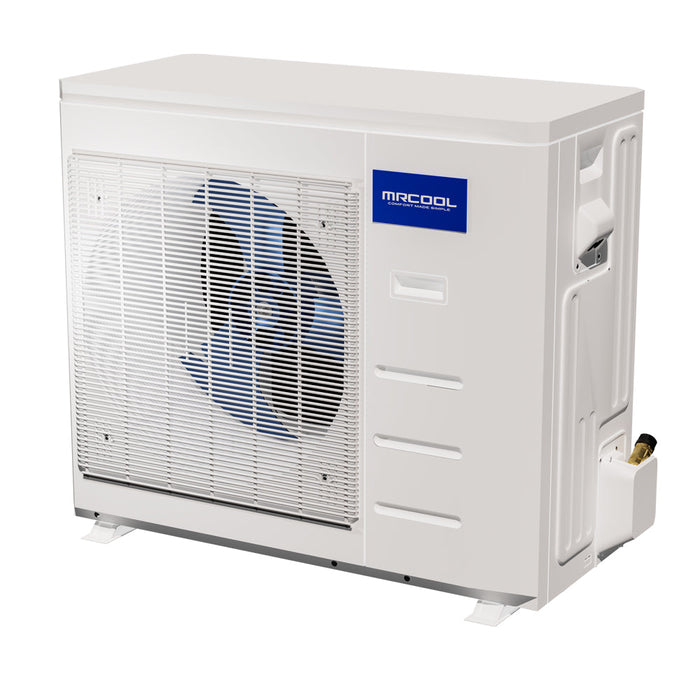

Condenser Dimensions

16.14 in D x 31.89 in H x 37.24 in W

Air Handler Dimensions

21.02 in D x 49.02 in H x 21.02 in W

SEER

18.5

EER

10.3

HSPF

hspf4/hspf5: 9.5/8

CFM

894.12/805.88/711.76

Cooling Capacity

30000

Heating Capacity

30000

Voltage

208/230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

40

Min Circuit Ampacity

25

Color

Gray

Rated Load

0.65

Zone Capacity

1

Refrigerant Type

R410A

Refrigerant Volume

111.11 oz

Decibel Rating

46.5/43/39.5

Decibel Rating Low

39.5

Decibel Rating High

46.5

Air Flow Direction

Multi-position

Min Ambient Cool

5~122F

Min Ambient Heat

5~75.2F

Lineset Included

yes

Line Set Length

25ft

Liquid Line Size

3/8in

Suction Line Size

5/8 in

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

1150/1050/900/850

Filter Type

Replaceable

Auxiliary Heater Included

no

Auxiliary Heater Available

yes

Auxiliary Heater Sizes

5kw, 8kw,10kw, 15kw

Adjustable Thermostat

yes

Fan Only Option

yes

Sleep Mode

yes

Auto Cool

yes

App Compatibility

no

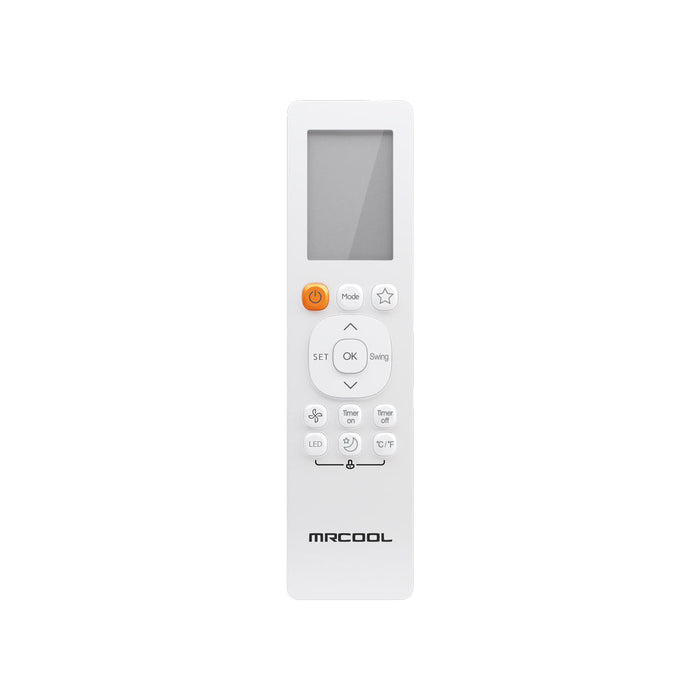

Remote Control Included

yes

AHRI Certified

yes

Base Warranty

10 years parts and labor

Condenser Weight

146.39 lbs

Air Handler Weight

128.53 lbs




Brochure

INstall Manual

Specs

Remote Manual

Warranty Doc
