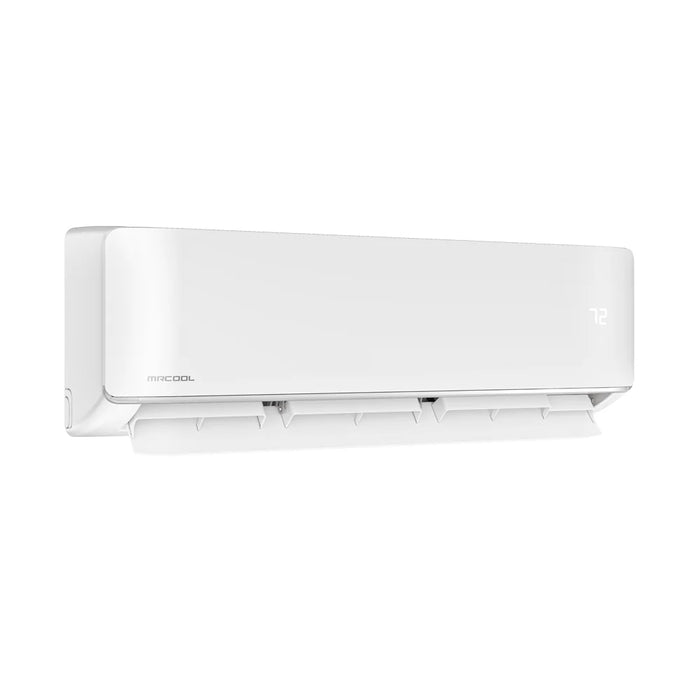

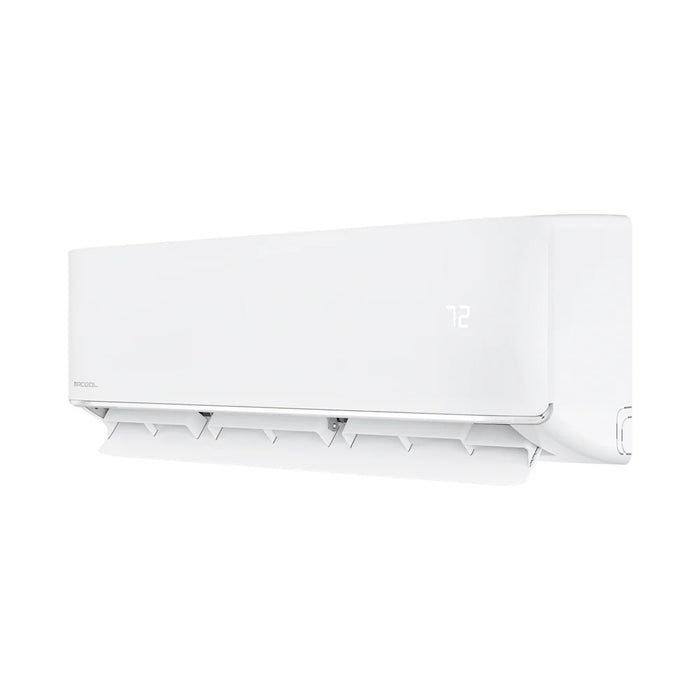

MRCOOL DIY 24K BTU 5th Gen Ductless Mini Split Air Handler - 230V

MRCOOL DIY 24K BTU 5th Gen Ductless Mini Split Air Handler - 230V

In stock, ready to ship
$1,299
$1,299 - $1,299
$1,299
$805
$805 - $805
$805

MRCOOL DIY 24K BTU 5th Gen Ductless Mini Split Air Handler - 230V

The included DIYPRO® cable further simplifies setup by eliminating the need for electrical conduit, while also enhancing durability and resistance to outdoor elements and wildlife. Managing your comfort is effortless with multiple control options. Adjust settings with the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function allows the system to detect and adjust temperatures based on the remote’s location, ensuring even distribution. Additionally, Dry Mode helps maintain a comfortable indoor environment by reducing excess humidity. Built for long-term performance, the outdoor unit’s Gold Fin® Condenser provides superior corrosion resistance, ideal for coastal environments. With industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with innovative smart features and easy installation.

Product Specifications:

BRAND NAME MRCOOL
SERIES DIY 5th gen Single-Zone Mini-splits
MODEL DIY-24-HP-WMAH-230D25-O
GTIN 840255587051
UPC 840255587051
SHORT DESCRIPTION MRCOOL® 24k DIY 5th Generation Mini-split Air Handler 230v
TONNAGE 2
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 1050 sqft
DECIBEL RATING LOW (DBA) 20
DECIBEL RATING HIGH (DBA) 54
NUMBER OF SPEEDS 5
OSCILLATION Yes
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
FILTER TYPE Reusable
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 8.9
NET HEIGHT (IN) 13.19
NET WIDTH (IN) 42.52
NET WEIGHT (LBS) 35.93
GROSS DEPTH (IN) 17.68
GROSS HEIGHT (IN) 14.29
GROSS WIDTH (IN) 46.73
GROSS WEIGHT (LBS) 49.82
