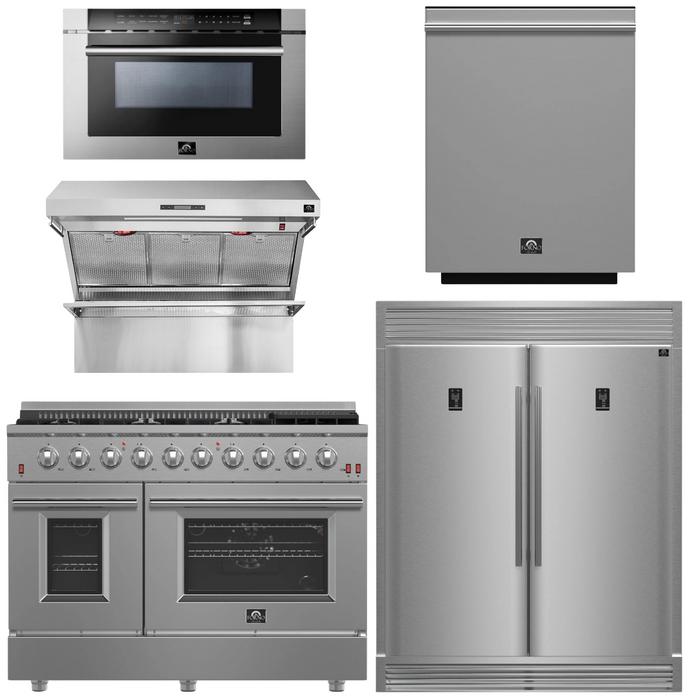

FORNO Package - 48 Inch Gas Range, Wall Mount Range Hood, Refrigerator, Microwave Drawer, Dishwasher, AP-FFSGS6244-48-8

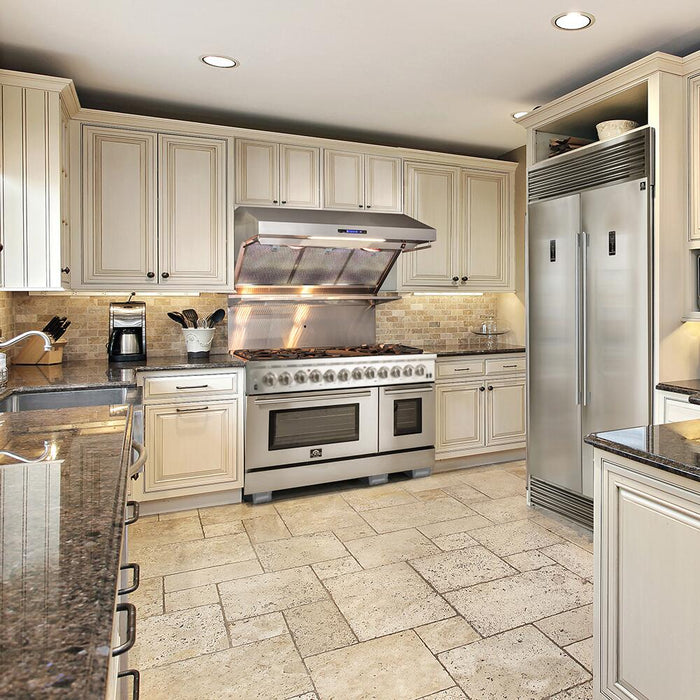

The Forno Appliance Package - 48 in. Galiano Gas Range with 8 Defendi Italian Burners in Stainless Steel, 60 Inch Refrigerator and Freezer, Microwave Drawer, Dishwasher, and Wine Cooler. This appliance bundle is perfect for your next kitchen model, and comes at a highly affordable price! Read more below!

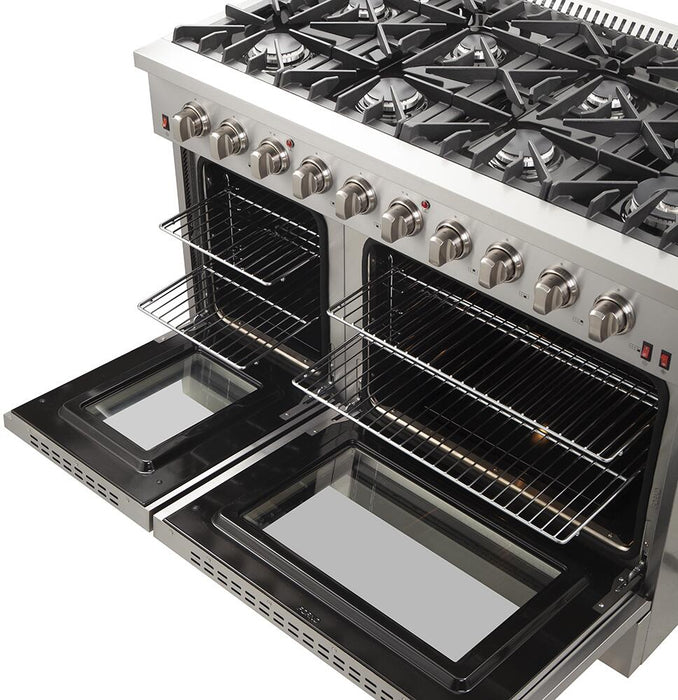

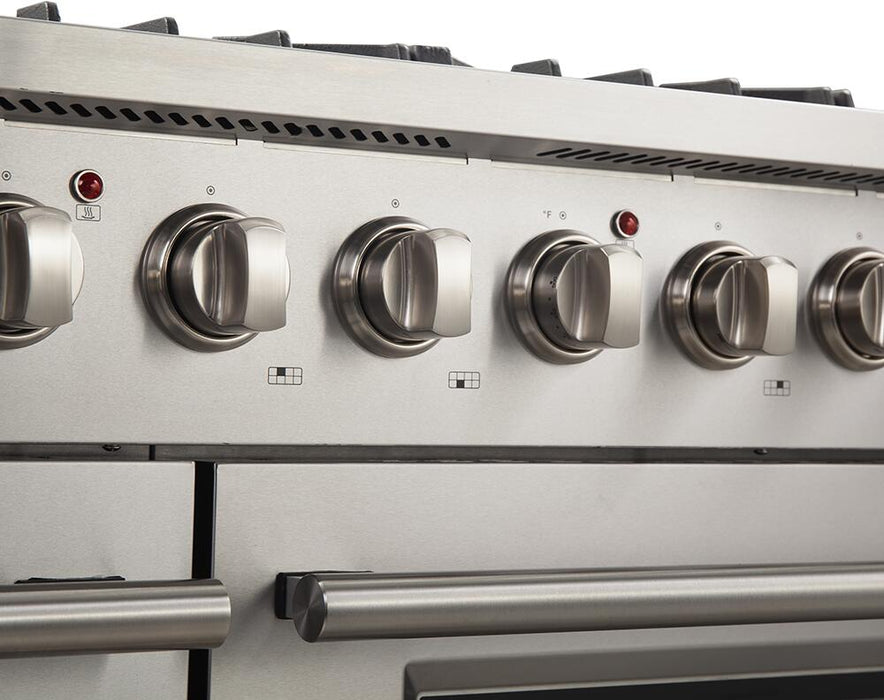

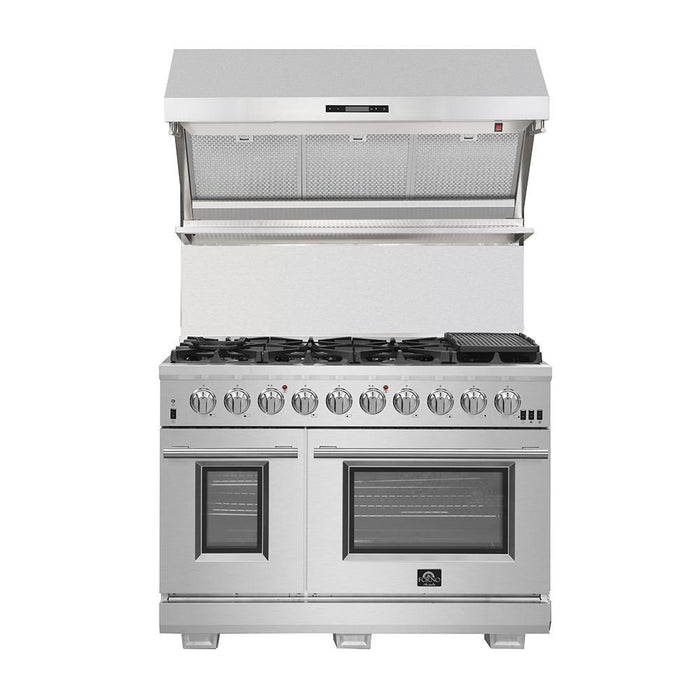

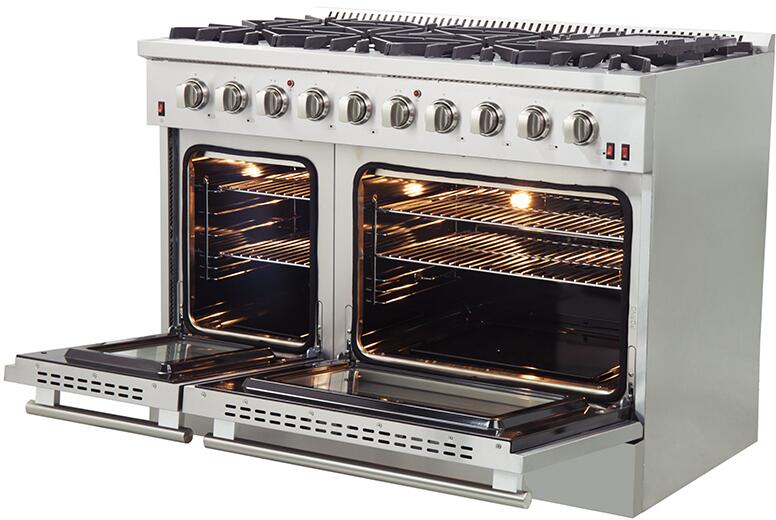

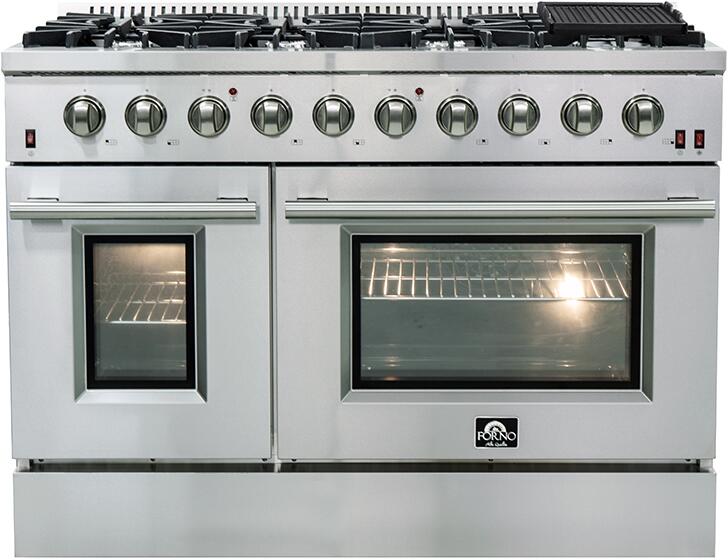

Range:

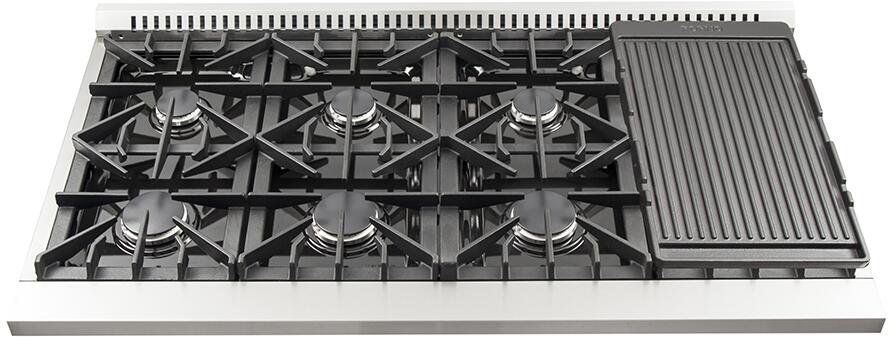

• Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
• Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
• Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
• Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.

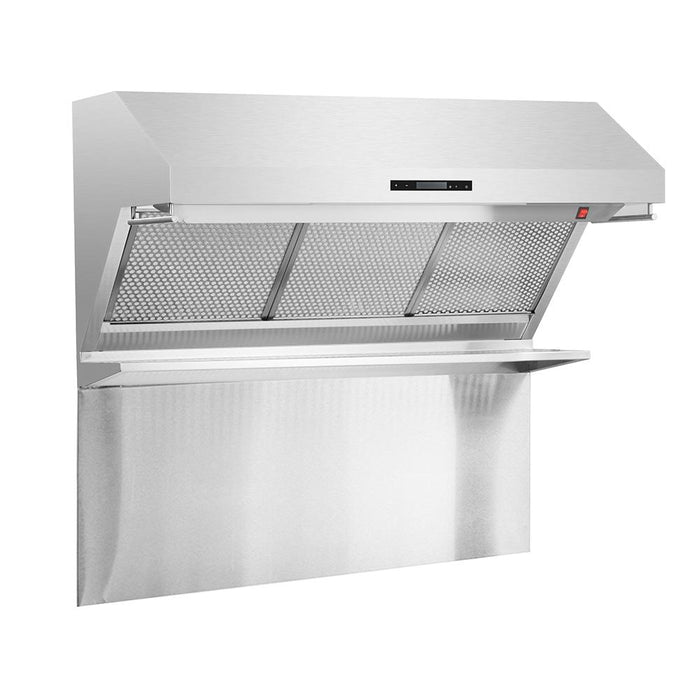

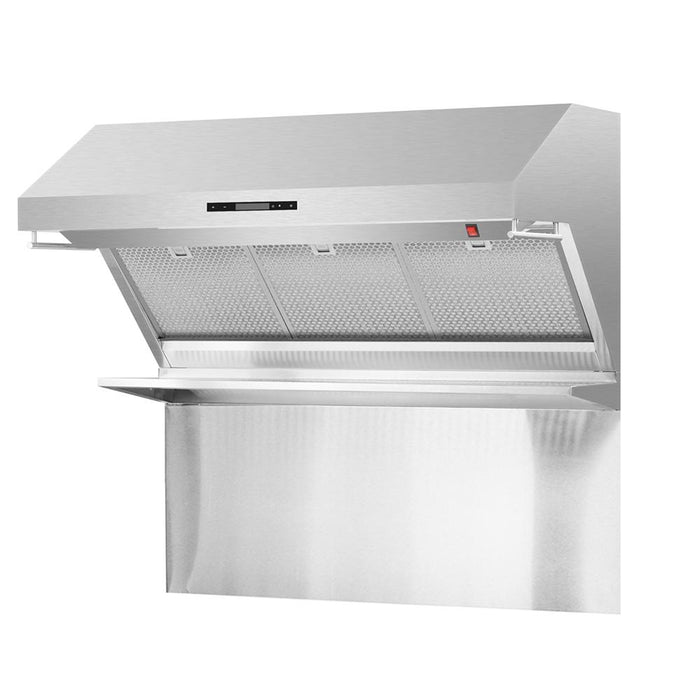

Range Hood:

• This 48" Wall Mount Range Hood by Forno comes with a power motor with up to 1,200 CFM of ventilation. The hood also features stainless steel hybrid filters, LED lighting, Red Light Warmers and electronic display control.
• Electronic Display Control. Allows you to effortlessly adjust the lighting and fan speeds of your hood.

• Two Blower 600 CFM each, Total 1,200 CFM. Powerful ventilation to clear smoke and grease from your kitchen.

• Red Light Warmer. Red infrared lights keep your dishes warm.
• Stainless Steel Hybrid Filters. Efficiently filters out grease from cooking and are dishwasher safe for easy cleaning.

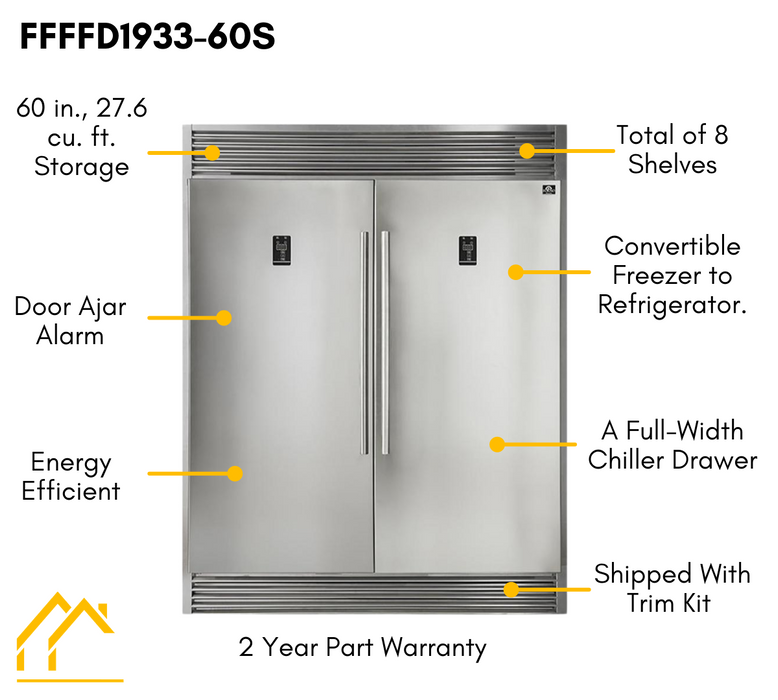

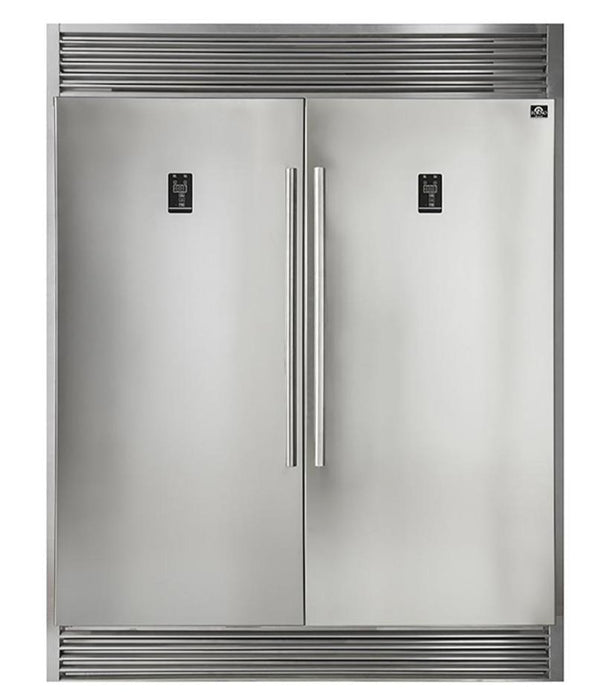

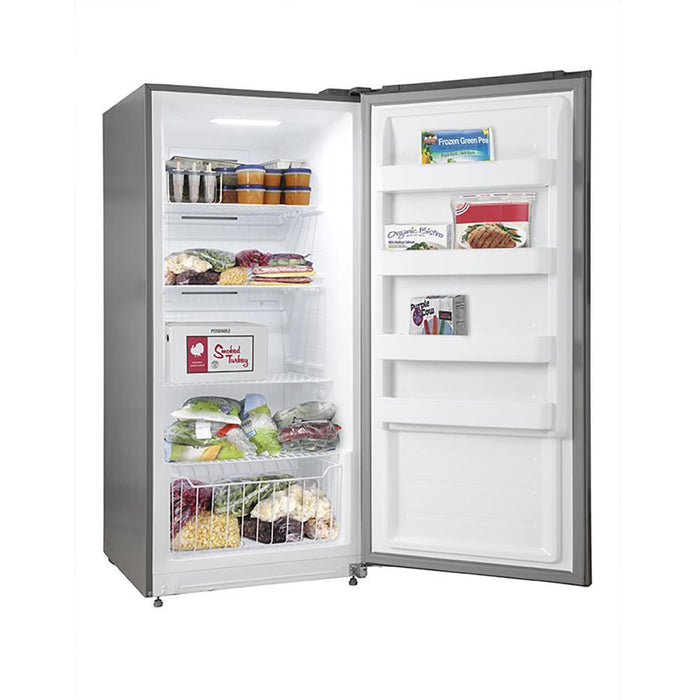

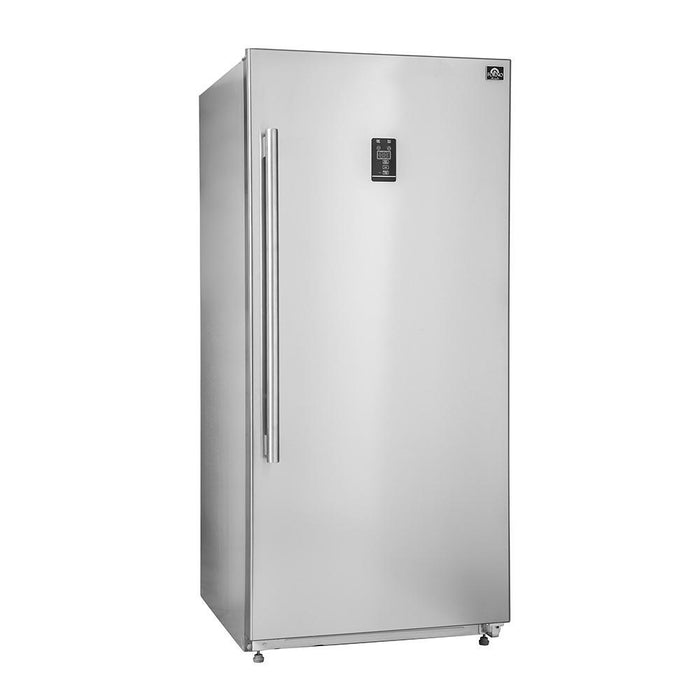

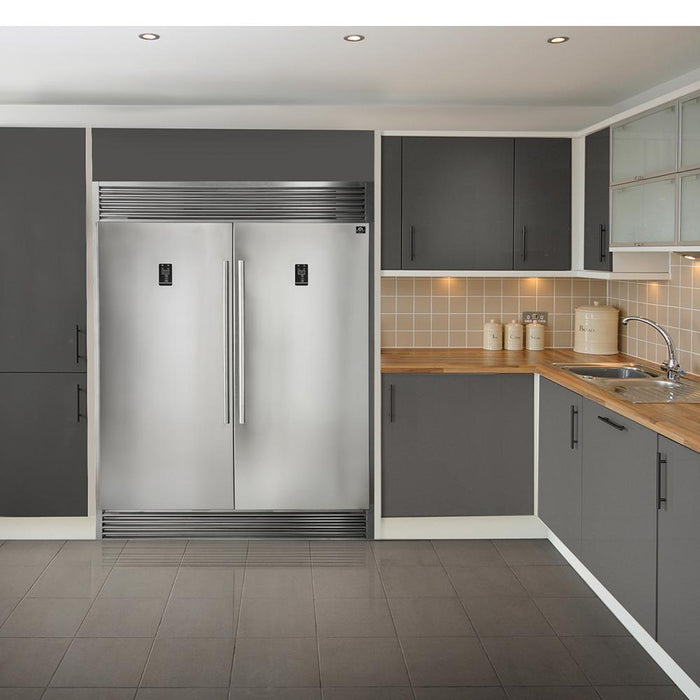

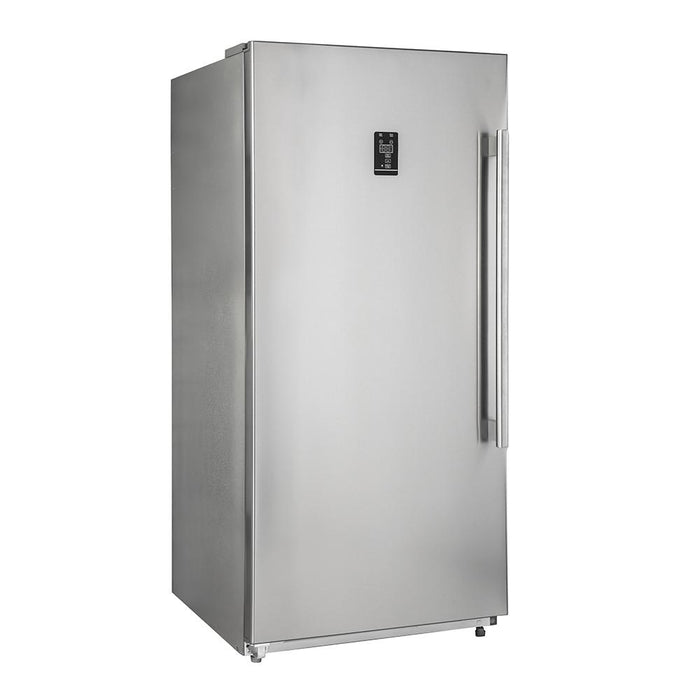

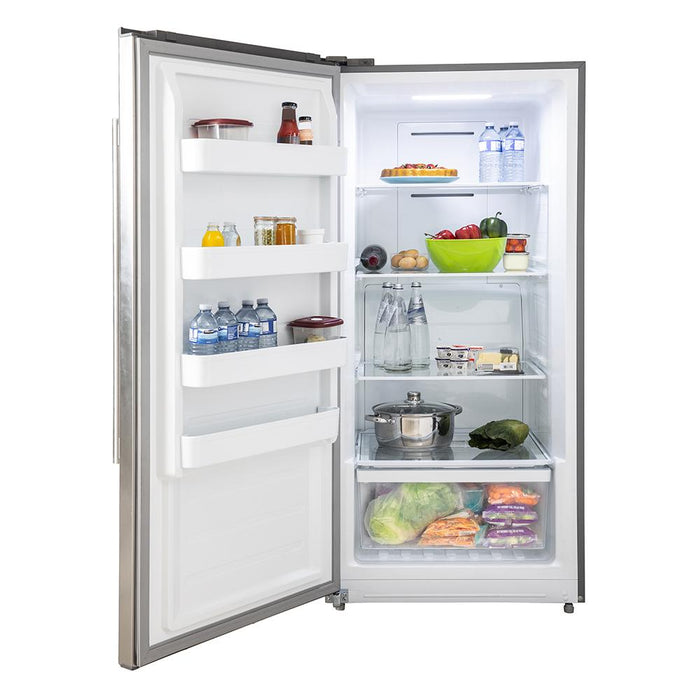

Refrigerator:

• LED Lighting. Bright white lighting from LED bulbs are energy efficient and offers elegant illumination throughout the interior.
• Convertible Freezer/Refrigerator. Choose between cooling and freezing, both zones are interchangeable and can be adjusted to freezer or refrigerator – from -18 to +6

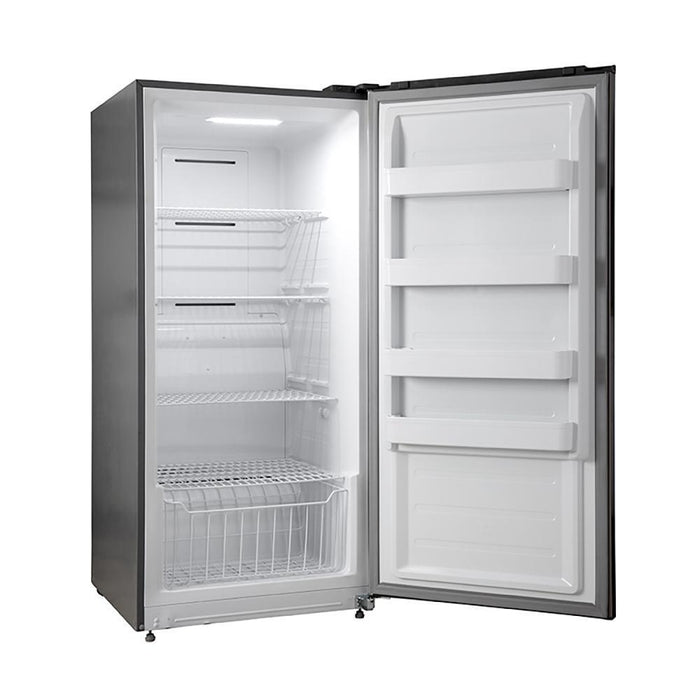

• Adjustable Glass Shelves. Adjustable glass shelves provide a stable platform while allowing light to go through and provide illumination throughout the bottom. You can rearrange or remove them for flexible storage or easy clean-up.
• No Frost Design. Keeps goods fresher for longer periods. Eliminates ice and bacteria build-up, avoids unpleasant odors.

• Door Open Alarm. If the door remains open for more than 5 minutes, the door open indicator light will illuminate and a buzzer will sound. Press any button on the display or close the door to quiet the door open alarm.

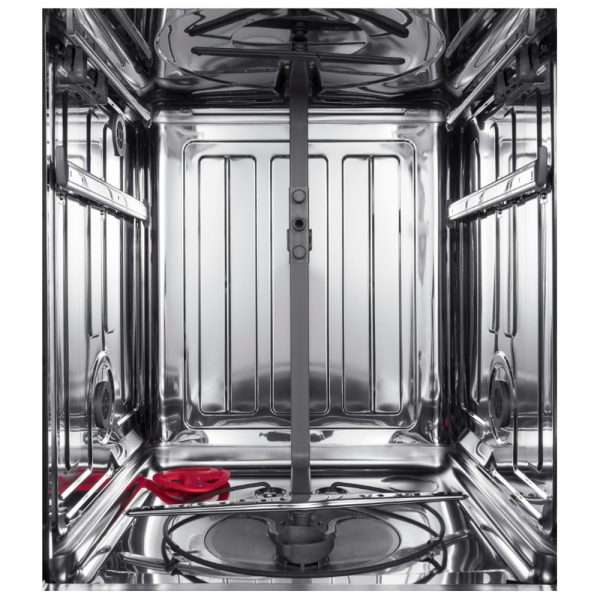

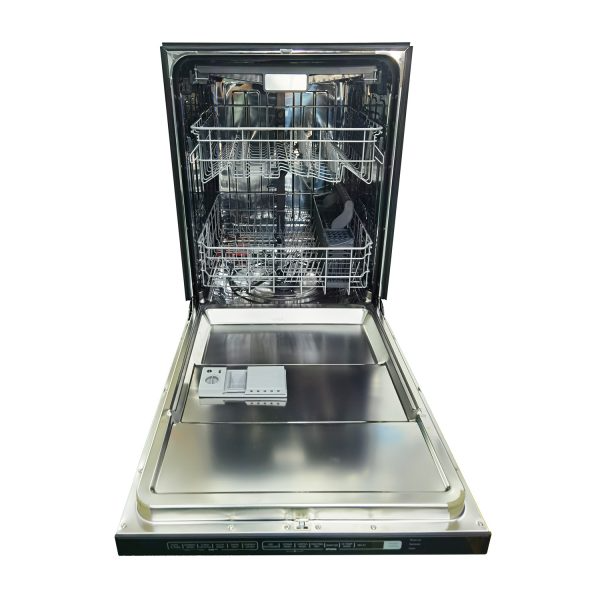

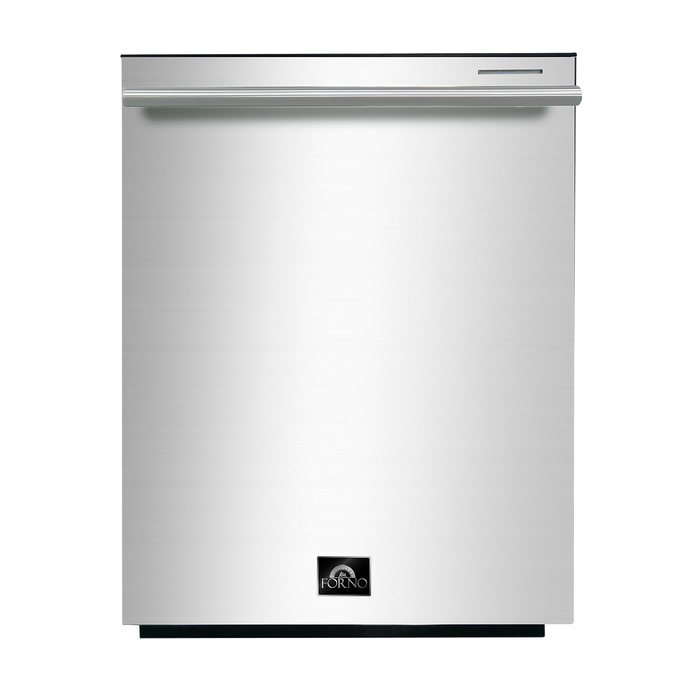

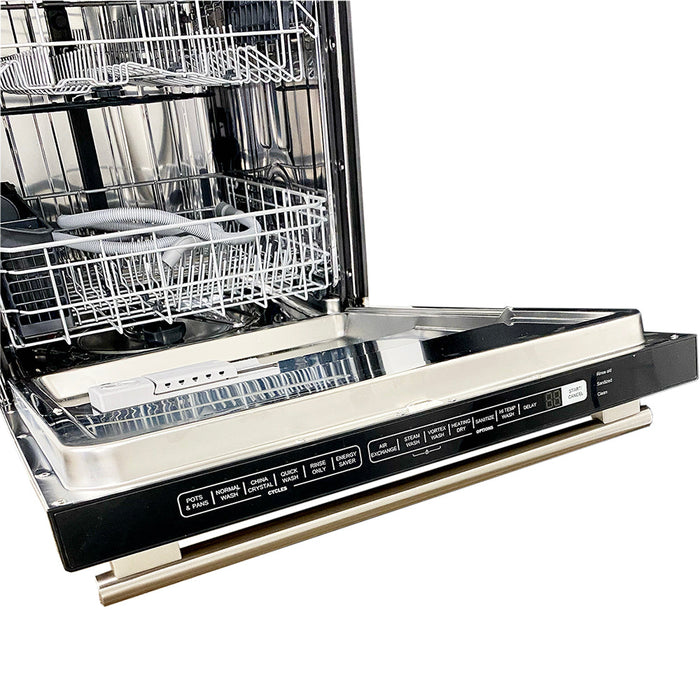

Dishwasher

• Multiple Wash Programs: Heavy, Normal, Light, Glass, Quick, Rinse
• Large Capacity: 14 Place Settings
• Energy Efficient: Low Energy Consumption of 249 kWh/year

• Ultra Quiet: 45 DB Quiet Washing
• Panel Ready: Suitable for Cabinet Or Stainless-Steel Front Panel

• Fast Drying Technology: Double drying (heating drying + fan drying)

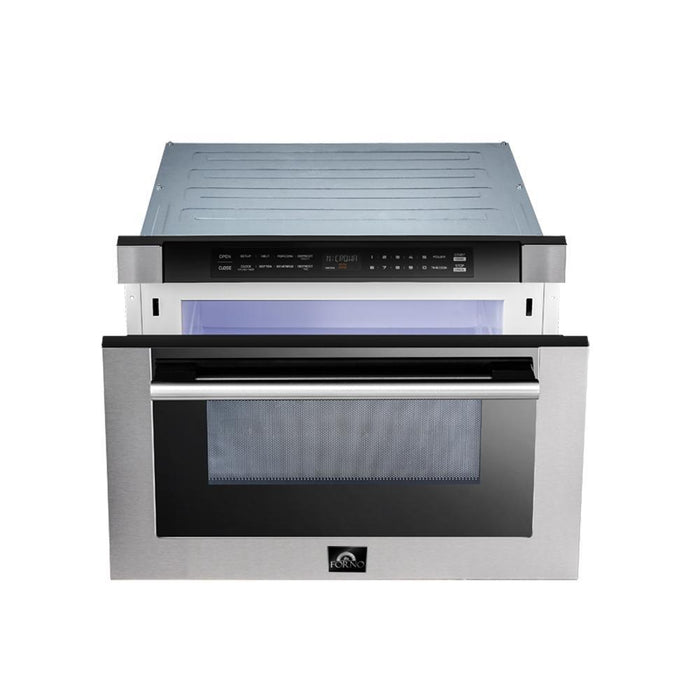

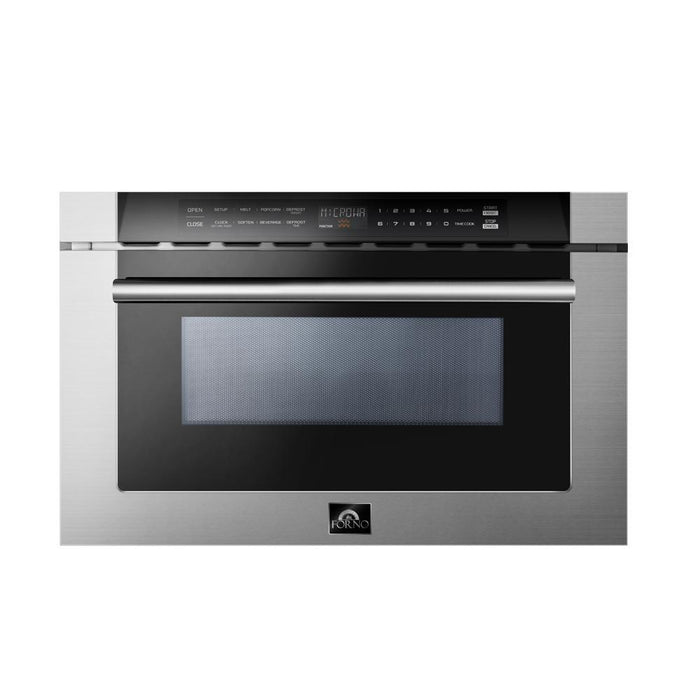

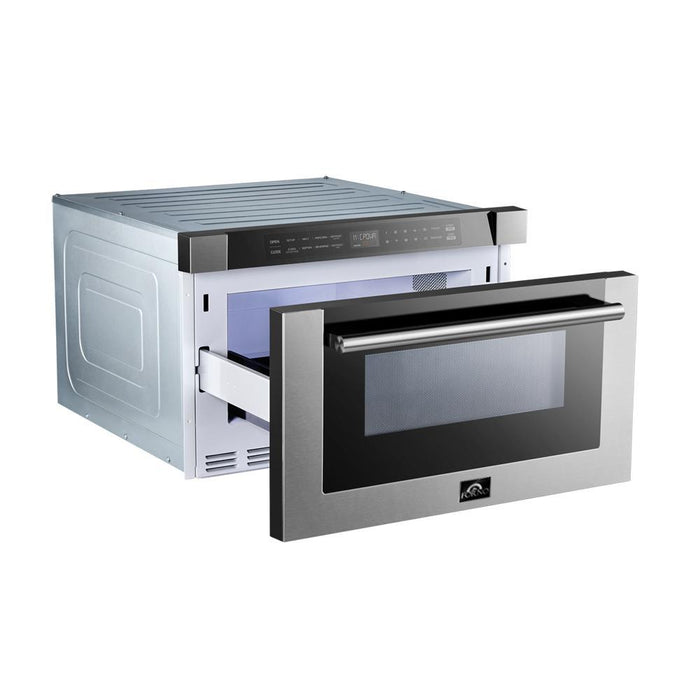

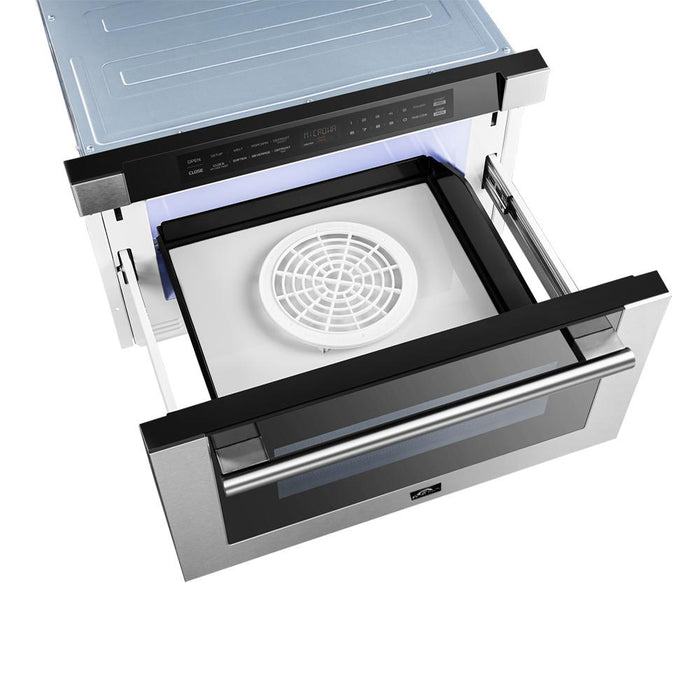

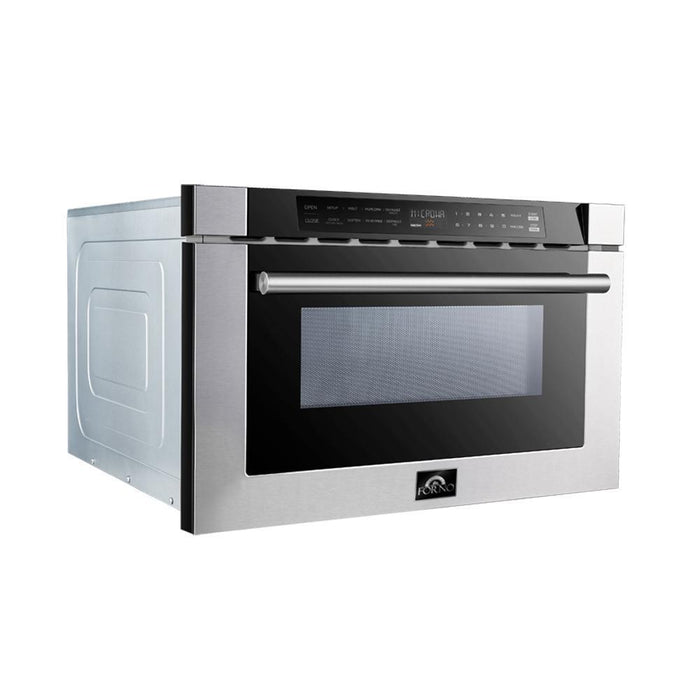

Microwave Drawer

• Large Capacity: With 1.2 cu ft capacity, the interior accommodates coffee mugs up to 7 inches tall and dishes up to 16 x 16 inches

• Easy Open: Open the drawer with a touch of a button - easy to use open and close buttons for added convenience

• Space-Saving: Designed to be seamlessly installed built-in under a counter or in a wall
• Versatile: Choose from 8 power levels for the perfect power option for your cooking needs
• Powerful: Features 1,000 watt cooking power for fast cooking. Boil water as quickly as 1 minute and 50 seconds with standard microwave settings

PRODUCT SPECIFICATIONS:

Range:

Dimensions	48" W x 28"D x 38"H
Burner Fuel	Natural Gas
Oven Fuel	Natural Gas
Electrical Requirements	120 Volts / 15 Amps
Oven Capacity (cu.ft)	4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven)
Number of Burners	8

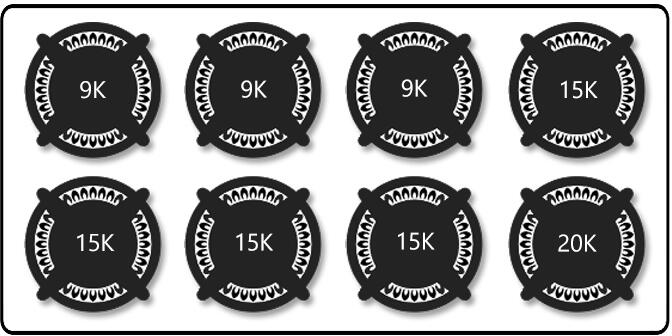

Cooktop BTUs	Front Left Output: 15000 Back Left Output: 9000 Back Right Output: 15000 Front Right Output: 20000 Middle Front Left Output: 15000 Middle Back Left Output: 9000 Middle Front Right Output: 15000 Middle Back Right Output: 9000
Oven BTUs	22000
Material	Stainless Steel
Convection Fan	Yes
Warranty	2 Years
Weight	413.36 lbs

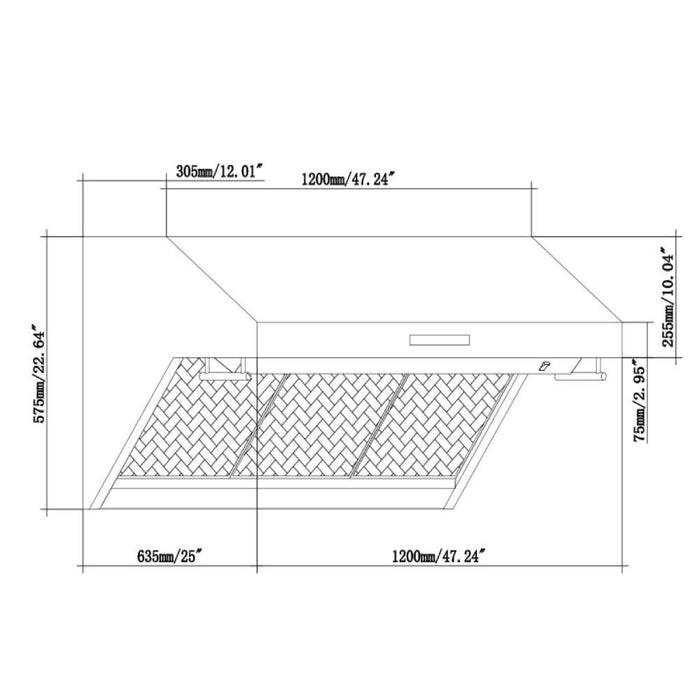

Range Hood

Dimensions:	48" W x 25"D x 22.6"H
Venting Size:	6" Outlet
Airflow (CFM)	1200 CFM
Lighting:	2 LED
Electrical:	120V / 60 Hz / 6.5 Amps
Mount Type:	Wall Mount
Weight:	130.24 lbs

Refrigerator:

Dimensions	60.5''W x 80"H x 29.7''D
Total Capacity	27.6 cu. ft.
Refrigerator Capacity	13.8 cu. ft.
Freezer Capacity	13.8 cu. ft.
Ice Maker	No
Material	Stainless Steel
Type	Built-In or Freestanding
Style	Side-by-Side
Electrical Requirements	120V / 15A / 60Hz
Weight	355.8 lbs
Warranty	2 Years Parts and Labor

Dishwasher:

Power:	120V / 60Hz
Energy Efficiency Class:	249 kWh/year
Noise Level:	45 dBA
Finish:	Stainless Steel
Materials:	Stainless Steel
Control Location:	Top
Warranty	2 Years
Dimensions
Width:	23.85"
Depth:	26.54"
Height:	33.74"
Product Weight:	102 lbs.

Microwave Oven:

Dimension	23 7/8" W x 24" D x 14 9/16" H
Voltage	120V/60HZ
Motor	1,000W
Mount Type	Drawer
Control Type	8 Power Levels
Product Weight	70.5
